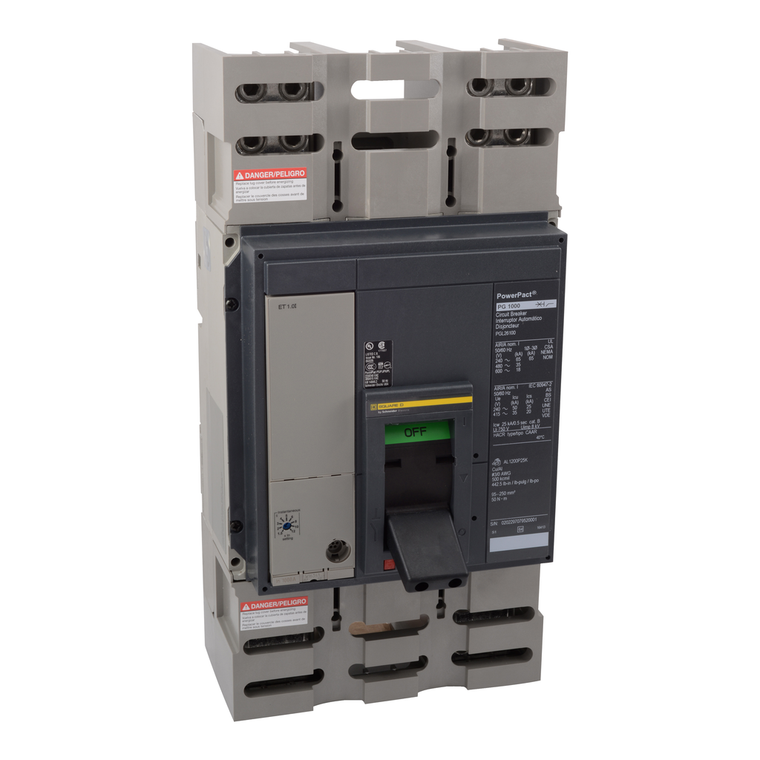

Schneider Electric PJL36100U31A Molded Case Circuit Breaker 600V 1000A

Schneider Electric PJL36100U31A Molded Case Circuit Breaker 600V 1000A

Schneider Electric
SKU:
PJL36100U31A
|
UPC:
785901869474
Availability:
Contact us to confirm availability and lead times.
$21,038.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT P-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT P-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has a Micrologic Interchangeable Standard with a 3.0 trip unit and an LI function. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT P circuit breakers are available in 2, 3, and 4-pole unit mount, I-Line, or drawout construction. This unit has lugs on both the line and load sides. This PowerPacT P, 1000A, 3 pole, circuit breaker has an interrupting rating of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT P circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz UL 489
[Ics] Rated Service Breaking Capacity:
35 kA 240 V AC 50/60 Hz IEC 60947-2 || 25 kA 380/415 V AC 50/60 Hz IEC 60947-2
Mounting Support:
lug
Utilisation Category:
category A
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Tightening Torque:
50-50 N.m 95-240 mm² (4 x AWG 3/0...500 kcmil) || 1.0-1.3 N.m
Suitability For Isolation:
yes IEC 60947-2
Control Type:
toggle
Ambient Air Temperature For Storage:
-50-85 °C
Line Rated Current:
1000-1000 A
Electrical Connection:
lugs, line || lugs, load
Trip Unit Technology:
electronic, standard, MicroLogic 3.0, LI
Network Frequency:
50/60 Hz
Width:
8.27 in
Pollution Degree:
3 IEC 60947-1
Mercury Free:
Yes
Quality Labels:
CE
Product Name:
PowerPact P
Depth:
8.05 in
Circuit Breaker Application:
HACR rated
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Awg Gauge:
4 x AWG 3/0...500 kcmil aluminium/copper
Pvc Free:
Yes
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 13123.36 ft (4000 m) with derating
Breaking Capacity Code:
J
Circularity Profile:
ENVEOLI2206033EN
Net Weight:
32 lb(US)
Environmental Disclosure:
ENVPEP2206033EN
Product Or Component Type:
circuit breaker
Range:
PowerPact
Eu Rohs Directive:
Compliant with Exemptions
Quantity Per Set:
1
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Warranty:
18 months
Wire Stripping Length:
30 mm
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Rohs Exemption Information:
Yes
Sustainable Offer Status:
Green Premium product
Mounting Mode:
unit mount lug)
Device Application:
distribution
Terminal Identifier:
AL1200P25K
Trip Unit Name:
MicroLogic 3.0
Long Time Pick-Up Adjustment Range:
0.4...1 x Ir
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Poles Description:
3P
Local Signalling:
overload 1 trip indicator green) || 1 trip indicator green)
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Ip Degree Of Protection:
front cover IP40
Height:
16.16 in
Continuous Current Rating:
0.8
Breaking Capacity:
AIR 100 kA 240 V AC 50/60 Hz UL 489 || AIR 65 kA 480 V AC 50/60 Hz UL 489 || AIR 25 kA 600 V AC 50/60 Hz UL 489 || Icu 65 kA 240 V AC 50/60 Hz IEC 60947-2 || Icu 50 kA 380/415 V AC 50/60 Hz IEC 60947-2
Ambient Air Temperature For Operation:
-2-70 °C
Product Certifications:
UL || CSA || NOM
