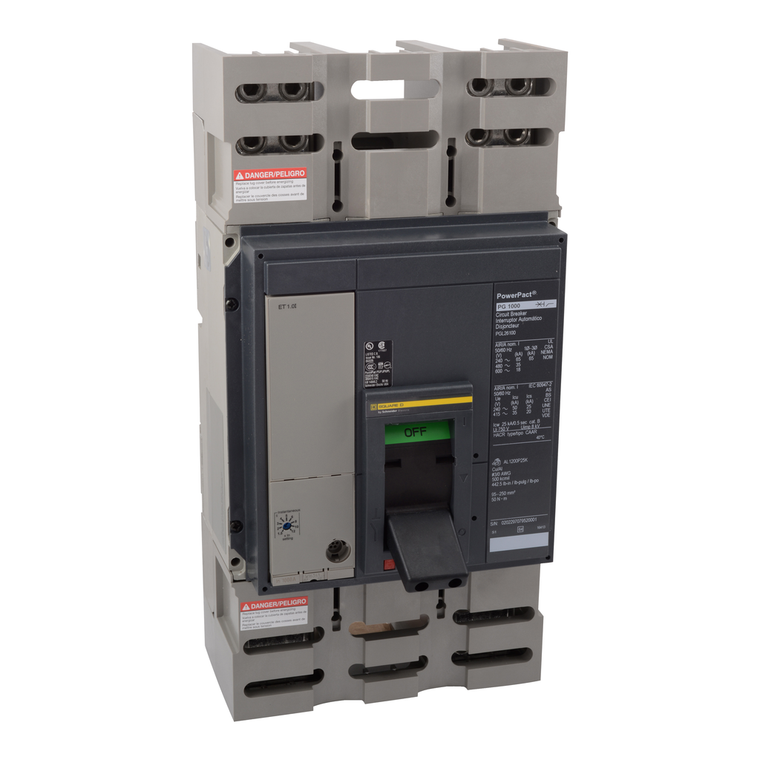

Schneider Electric PJL36100U43A Molded Case Circuit Breaker 600V 1000A

Schneider Electric PJL36100U43A Molded Case Circuit Breaker 600V 1000A

Schneider Electric
SKU:
PJL36100U43A
|
UPC:
785901497950
$23,387.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
PowerPacT P-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT P-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has a Micrologic Interchangeable Ammeter with a 5.0A trip unit and an LSI function. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT P circuit breakers are available in 2, 3, and 4-pole unit mount, I-Line, or drawout construction. This unit has lugs on both the line and load sides. This PowerPacT P, 1000A, 3 pole, circuit breaker has an interrupting rating of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT P circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Mounting Mode:
unit mount lug)
Long Time Pick-Up Adjustment Range:
0.4...1 x Ir
Electrical Connection:
lugs, line || lugs, load
Wire Stripping Length:
30 mm
Pvc Free:
Yes
Environmental Disclosure:
ENVPEP2206033EN
Poles Description:
3P
Utilisation Category:
category A
Circuit Breaker Application:
HACR rated
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz UL 489
Quality Labels:
CE
Product Certifications:
UL || CSA || NOM
Terminal Identifier:
AL1200P25K
Pollution Degree:
3 IEC 60947-1
Continuous Current Rating:
0.8
Product Name:
PowerPact P
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
[Ics] Rated Service Breaking Capacity:
35 kA 240 V AC 50/60 Hz IEC 60947-2 || 25 kA 380/415 V AC 50/60 Hz IEC 60947-2
Tightening Torque:
50-50 N.m 95-240 mm² (4 x AWG 3/0...500 kcmil) || 1.0-1.3 N.m
Local Signalling:
overload 1 trip indicator green) || 1 trip indicator green) || trip causes 1 trip indicator green)
Rohs Exemption Information:
Yes
Suitability For Isolation:
yes IEC 60947-2
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Depth:
8.05 in
Line Rated Current:
1000-1000 A
Device Application:
distribution
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Product Or Component Type:
circuit breaker
Breaking Capacity Code:
J
Network Frequency:
50/60 Hz
Control Type:
toggle
Height:
16.16 in
Breaking Capacity:
AIR 100 kA 240 V AC 50/60 Hz UL 489 || AIR 65 kA 480 V AC 50/60 Hz UL 489 || AIR 25 kA 600 V AC 50/60 Hz UL 489 || Icu 65 kA 240 V AC 50/60 Hz IEC 60947-2 || Icu 50 kA 380/415 V AC 50/60 Hz IEC 60947-2
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Trip Unit Name:
MicroLogic 5.0 A
Ip Degree Of Protection:
front cover IP40
Range:
PowerPact
Mercury Free:
Yes
Trip Unit Technology:
electronic, ammeter, MicroLogic 5.0 A, LSI
Width:
8.27 in
Quantity Per Set:
1
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Mounting Support:
lug
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Warranty:
18 months
Net Weight:
32 lb(US)
Ambient Air Temperature For Operation:
-2-70 °C
Eu Rohs Directive:
Compliant with Exemptions
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 13123.36 ft (4000 m) with derating
Circularity Profile:
ENVEOLI2206033EN
Sustainable Offer Status:
Green Premium product
Ambient Air Temperature For Storage:
-50-85 °C
Awg Gauge:
4 x AWG 3/0...500 kcmil aluminium/copper
