Schneider Electric PJA36120 Molded Case Circuit Breaker 600V 1200A
Schneider Electric

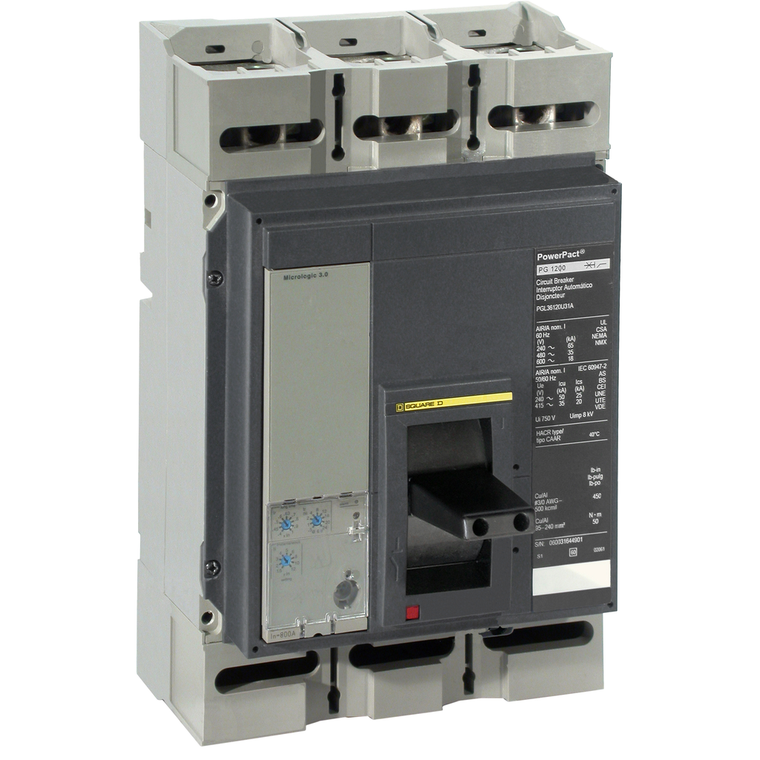

Schneider Electric PJL36120 Molded Case Circuit Breaker 600V 1200A
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT P-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT P-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has an electronic trip unit, ET 1.0I. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT P circuit breakers are available in 2, 3, and 4-pole unit mount, I-Line, or drawout construction. This unit has lugs on both the line and load sides. This PowerPacT P, 1200A, 3 pole, circuit breaker has an interrupting rating of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT P circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 13123.36 ft (4000 m) with derating
- Suitability For Isolation:
- yes IEC 60947-2
- [Ue] Rated Operational Voltage:
- 600 V AC 50/60 Hz UL 489
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Wire Stripping Length:
- 30 mm
- Depth:
- 8.05 in
- Width:
- 8.27 in
- Eu Rohs Directive:
- Compliant with Exemptions
- Ambient Air Temperature For Operation:
- -2-70 °C
- Circuit Breaker Application:
- HACR rated
- Ip Degree Of Protection:
- front cover IP40
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Local Signalling:
- 1 trip indicator green)
- Range:
- PowerPact
- Environmental Disclosure:
- ENVPEP2206033EN
- Ambient Air Temperature For Storage:
- -50-85 °C
- Tightening Torque:
- 50-50 N.m 95-240 mm² (4 x AWG 3/0...500 kcmil) || 1.0-1.3 N.m
- Poles Description:
- 3P
- Breaking Capacity:
- AIR 100 kA 240 V AC 50/60 Hz UL 489 || AIR 65 kA 480 V AC 50/60 Hz UL 489 || AIR 25 kA 600 V AC 50/60 Hz UL 489 || Icu 65 kA 240 V AC 50/60 Hz IEC 60947-2 || Icu 50 kA 380/415 V AC 50/60 Hz IEC 60947-2
- Device Application:
- distribution
- Long Time Pick-Up Adjustment Range:
- 1 In
- Net Weight:
- 32 lb(US)
- Height:
- 16.16 in
- Warranty:
- 18 months
- Quantity Per Set:
- 1
- Electrical Connection:
- lugs, line || lugs, load
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Circularity Profile:
- ENVEOLI2206033EN
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Utilisation Category:
- category A
- Product Or Component Type:
- circuit breaker
- [Ics] Rated Service Breaking Capacity:
- 35 kA 240 V AC 50/60 Hz IEC 60947-2 || 25 kA 380/415 V AC 50/60 Hz IEC 60947-2
- Line Rated Current:
- 1200-1200 A
- Quality Labels:
- CE
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Network Frequency:
- 50/60 Hz
- Product Name:
- PowerPact P
- Pollution Degree:
- 3 IEC 60947-1
- Terminal Identifier:
- AL1200P25K
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Mercury Free:
- Yes
- Mounting Support:
- lug
- Mounting Mode:
- unit mount lug)
- Sustainable Offer Status:
- Green Premium product
- Trip Unit Technology:
- electronic, basic, ET 1.0I, I
- Control Type:
- toggle
- Rohs Exemption Information:
- Yes
- Product Certifications:
- UL || CSA || NOM
- Trip Unit Name:
- ET 1.0I
- Awg Gauge:
- 4 x AWG 3/0...500 kcmil aluminium/copper
- Continuous Current Rating:
- 0.8
- Breaking Capacity Code:
- J
- Pvc Free:
- Yes
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
