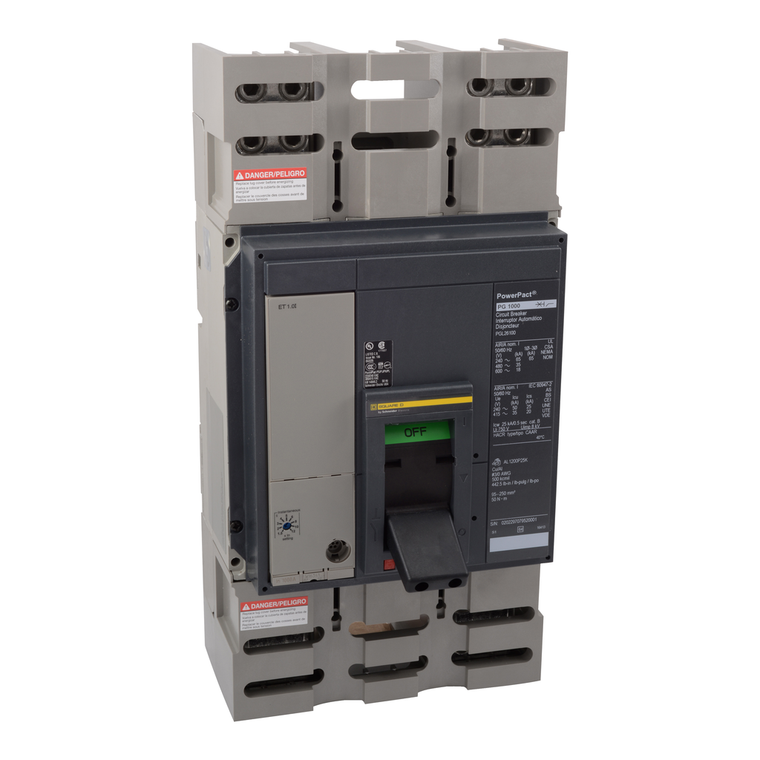

Schneider Electric PJL36120CU33A Molded Case Circuit Breaker 600V 1200A

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric PJL36120CU33A Molded Case Circuit Breaker 600V 1200A

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

PJL36120CU33A

UPC:

7.85901E+11

MPN:

Condition:

New

Circuit Breaker Application:

HACR rated

Wire Stripping Length:

30 mm

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Line Rated Current:

1200-1200 A

Electrical Connection:

lugs, line || lugs, load

Product Name:

PowerPact P

Circularity Profile:

ENVEOLI2206033EN

Poles Description:

3P

Rohs Exemption Information:

Yes

Quality Labels:

CE

Tightening Torque:

50-50 N.m 95-240 mm² (4 x AWG 3/0...500 kcmil) || 1.0-1.3 N.m

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Trip Unit Technology:

electronic, standard, MicroLogic 5.0, LSI

Breaking Capacity:

AIR 100 kA 240 V AC 50/60 Hz UL 489 || AIR 65 kA 480 V AC 50/60 Hz UL 489 || AIR 25 kA 600 V AC 50/60 Hz UL 489 || Icu 65 kA 240 V AC 50/60 Hz IEC 60947-2 || Icu 50 kA 380/415 V AC 50/60 Hz IEC 60947-2

Ip Degree Of Protection:

front cover IP40

Product Certifications:

UL || CSA || NOM

Control Type:

toggle

[Ue] Rated Operational Voltage:

600 V AC 50/60 Hz UL 489

Long Time Pick-Up Adjustment Range:

0.4...1 x Ir

Device Application:

distribution

Pollution Degree:

3 IEC 60947-1

Eu Rohs Directive:

Compliant with Exemptions

[Uimp] Rated Impulse Withstand Voltage:

8 kV IEC 60947-2

Range:

PowerPact

Awg Gauge:

4 x AWG 3/0...500 kcmil aluminium/copper

Number Of Slots:

2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)

Operating Altitude:

< 6561.68 ft (2000 m) without derating || 13123.36 ft (4000 m) with derating

[Ui] Rated Insulation Voltage:

750 V IEC 60947-2

Depth:

8.05 in

[Ics] Rated Service Breaking Capacity:

35 kA 240 V AC 50/60 Hz IEC 60947-2 || 25 kA 380/415 V AC 50/60 Hz IEC 60947-2

Quantity Per Set:

1

Pvc Free:

Yes

Standards:

UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2

Sustainable Offer Status:

Green Premium product

Continuous Current Rating:

1

Utilisation Category:

category A

Trip Unit Name:

MicroLogic 5.0

California Proposition 65:

WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information

Network Frequency:

50/60 Hz

Local Signalling:

overload 1 1 LED amber) || 1 trip indicator green)

Terminal Identifier:

AL1200P25K

Width:

8.27 in

Height:

16.16 in

Suitability For Isolation:

yes IEC 60947-2

Mounting Mode:

unit mount lug)

Ambient Air Temperature For Operation:

-2-70 °C

Mounting Support:

lug

Environmental Disclosure:

ENVPEP2206033EN

Ambient Air Temperature For Storage:

-50-85 °C

Warranty:

18 months

Net Weight:

32 lb(US)

Product Or Component Type:

circuit breaker

Mercury Free:

Yes

Breaking Capacity Code:

J
