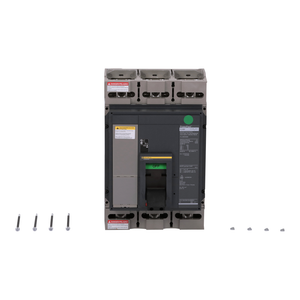

Schneider Electric PJM36000S80 Automatic Molded Case Switch 600V 800A

Schneider Electric PJM36000S80 Automatic Molded Case Switch 600V 800A

Schneider Electric
SKU:
PJM36000S80
|
UPC:
785901772491
Availability:
Contact us to confirm availability and lead times.
$7,236.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT P-Frame automatic switches are a disconnect device and can be used to open and close a circuit under normal operating conditions. The automatic switches are similar in construction, use the same accessories, and offer the same connection possibilities as the P-Frame circuit breaker version. The switches have a factory set, nonadjustable trip point calibrated to protect the molded case switch. The automatic switch can make and break its rated current. For an overload or a short circuit, it must be protected by an upstream device. PowerPacT P-Frame switches are available in unit mount, I-Line, plug-in, or drawout versions. This switch has lugs on the line side and terminal nuts on the load side. This PowerPacT P, 800A, 3 pole, automatic switch has a short circuit withstand current rating of 25kA at 600VAC. PowerPacT P automatic switches comply to UL and CSA standards.
Additional Information
Breaking Capacity Code:
J
Depth:
8.05 in
Warranty:
18 months
Pvc Free:
Yes
Product Or Component Type:
automatic switch
Height:
12.86 in
Rohs Exemption Information:
Yes
Environmental Disclosure:
ENVPEP2206033EN
Eu Rohs Directive:
Compliant with Exemptions
Poles Description:
3P
Circularity Profile:
ENVEOLI2206033EN
Tightening Torque:
50-50 N.m 95-240 mm² (3 x AWG 3/0...3 x 500 kcmil) || 1.0-1.3 N.m
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Sustainable Offer Status:
Green Premium product
Mercury Free:
Yes
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Electrical Connection:
lugs, line || terminal nut, load
Width:
8.27 in
Terminal Identifier:
AL800M23K
Device Application:
distribution
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
