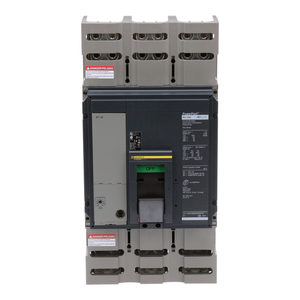

Schneider Electric PKL36120CU44A Molded Case Circuit Breaker 600V 1200A

(No reviews yet) Write a Review
SKU:
PKL36120CU44A
UPC:
785901974390
Condition:
New
Ip Degree Of Protection:
front cover IP40
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 13123.36 ft (4000 m) with derating
Pvc Free:
Yes
Breaking Capacity:
AIR 65 kA 240 V AC 50/60 Hz UL 489 || AIR 50 kA 480 V AC 50/60 Hz UL 489 || AIR 50 kA 600 V AC 50/60 Hz UL 489 || Icu 50 kA 240 V AC 50/60 Hz IEC 60947-2 || Icu 50 kA 380/415 V AC 50/60 Hz IEC 60947-2
Suitability For Isolation:
yes IEC 60947-2
Sustainable Offer Status:
Green Premium product
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz UL 489
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Quality Labels:
CE
Product Name:
PowerPact P
Device Application:
distribution
Circuit Breaker Application:
HACR rated
Local Signalling:
overload 1 trip indicator green) || 1 trip indicator green) || trip causes 1 trip indicator green)
[Ics] Rated Service Breaking Capacity:
25 kA 240 V AC 50/60 Hz IEC 60947-2 || 25 kA 380/415 V AC 50/60 Hz IEC 60947-2
Rohs Exemption Information:
Yes
Awg Gauge:
4 x AWG 3/0...500 kcmil aluminium/copper
Line Rated Current:
1200-1200 A
Depth:
8.05 in
Utilisation Category:
category A
Trip Unit Technology:
electronic, ammeter, MicroLogic 6.0 A, LSIG
Product Or Component Type:
circuit breaker
Control Type:
toggle
Range:
PowerPact
Mounting Mode:
unit mount lug)
Height:
16.16 in
Terminal Identifier:
AL1200P25K
Eu Rohs Directive:
Compliant with Exemptions
Net Weight:
32 lb(US)
Tightening Torque:
50-50 N.m 95-240 mm² (4 x AWG 3/0...500 kcmil) || 1.0-1.3 N.m
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Pollution Degree:
3 IEC 60947-1
Continuous Current Rating:
1
Ambient Air Temperature For Operation:
-2-70 °C
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Quantity Per Set:
1
Width:
8.27 in
Poles Description:
3P
Circularity Profile:
ENVEOLI2206033EN
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Warranty:
18 months
Breaking Capacity Code:
K
Trip Unit Name:
MicroLogic 6.0 A
Mounting Support:
lug
Network Frequency:
50/60 Hz
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Wire Stripping Length:
30 mm
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Product Certifications:
UL || CSA || NOM
Mercury Free:
Yes
Long Time Pick-Up Adjustment Range:
0.4...1 x Ir
Ambient Air Temperature For Storage:
-50-85 °C
Electrical Connection:
lugs, line || lugs, load
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Environmental Disclosure:
ENVPEP2206033EN
Brochure:
View
Catalog:
View
Datasheet:
View
$36,128.00

Description

PowerPacT P-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT P-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has a Micrologic Interchangeable Ammeter with a 6.0A trip unit and an LSIG function. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT P circuit breakers are available in 2, 3, and 4-pole unit mount, I-Line, or drawout construction. This unit has lugs on both the line and load sides. This PowerPacT P, 1200A, 3 pole, circuit breaker has an interrupting rating of 50kA at 600VAC. This circuit breaker has a continuous current rating of 100%. PowerPacT P circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
