Schneider Electric Q23225NRBC Encl Cir Brkr 240V 225A Nema 3R Csa
Schneider Electric
$398.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

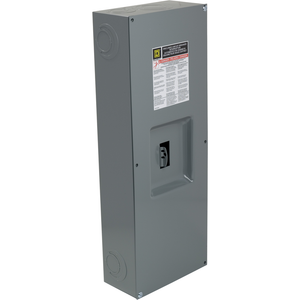

Schneider Electric Q23225NRBC Encl Cir Brkr 240V 225A Nema 3R Csa
Enclosed Devices are designed for reliability and safety. Indoor NEMA type 1 and outdoor NEMA type 3R options are available. Enclosed Devices provide an easy installation for residential and commercial air conditioning systems and other single phase applications. Metallic and non-metallic enclosure options are available as well. This circuit breaker enclosure has a current rating of 225A and 2 pole or 3 pole. It is rated at NEMA 3R. The product is CSA Rated.
- Circularity Profile:
- N/A
- Line Rated Current:
- 100-225 A
- Environmental Disclosure:
- ENVPEP1408006EN
- Pvc Free:
- Yes
- Poles Description:
- 3P || 2P
- Halogen Content Performance:
- Halogen free plastic parts product
- Eu Rohs Directive:
- Compliant
- Mercury Free:
- Yes
- Toxic Heavy Metal Free:
- Yes
- Product Certifications:
- CSA || UL
- Depth:
- 140 mm
- Enclosure Material:
- steel
- Rohs Exemption Information:
- Yes
- Line Rated Current:
- 225 A
- Product Or Component Type:
- enclosure
- Width:
- 251 mm
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Range Of Product:
- PowerPact Q
- Sustainable Offer Status:
- Green Premium product
- Circuit Breaker Type:
- QBL || QGL || QJL
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation:
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Height:
- 667 mm
- Datasheet:
- View
