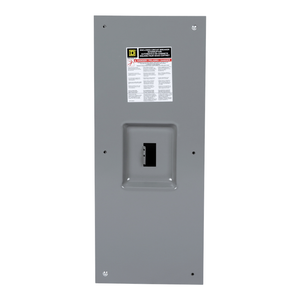

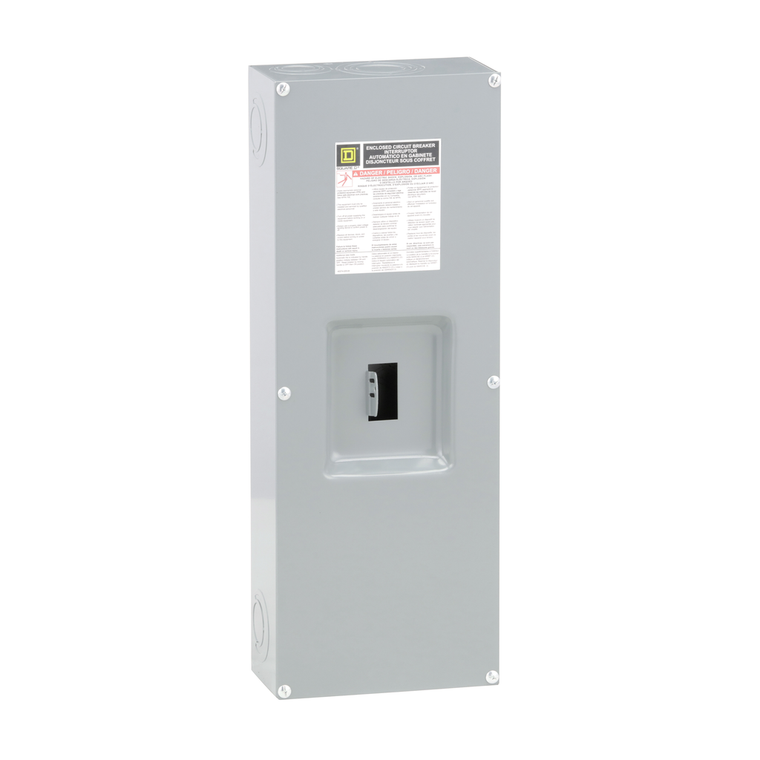

Schneider Electric Q23225NS Enclosure Circuit Breaker 240V 225A
Schneider Electric
$218.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Enclosed Devices are designed for reliability and safety. Indoor NEMA type 1 and outdoor NEMA type 3R options are available. Enclosed Devices provide an easy installation for residential and commercial air conditioning systems and other single phase applications. Metallic and non-metallic enclosure options are available as well. This circuit breaker enclosure has a current rating of 225A and 2 pole or 3 pole. It is rated at NEMA 1. The product has a surface mount and is UL listed. This PowerPact Q, Molded Case Circuit Breaker Enclosure, 2P, 3P, 100-200A, Type 3R, enclosure is made of steel. This enclosure complies to UL & CSA standards. The dimensions are 594 mm (H,)194 mm (W),121 mm (D).
- Eu Rohs Directive:
- Compliant
- Warranty:
- 18 months
- Rohs Exemption Information:
- Yes
- Environmental Disclosure:
- ENVPEP1408006EN
- Line Rated Current:
- 100-225 A
- Circuit Breaker Type:
- QJL || QDL || QBL
- Halogen Content Performance:
- Halogen free plastic parts product
- Product Certifications:
- UL
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Pvc Free:
- Yes
- Depth:
- 121 mm
- Mercury Free:
- Yes
- Line Rated Current:
- 225 A
- Toxic Heavy Metal Free:
- Yes
- Product Or Component Type:
- enclosure
- Width:
- 251 mm
- Sustainable Offer Status:
- Green Premium product
- Circularity Profile:
- N/A
- China Rohs Regulation:
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Enclosure Material:
- steel
- Poles Description:
- 3P || 2P
- Device Mounting:
- surface
- Height:
- 667 mm
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Range Of Product:
- PowerPact Q
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
