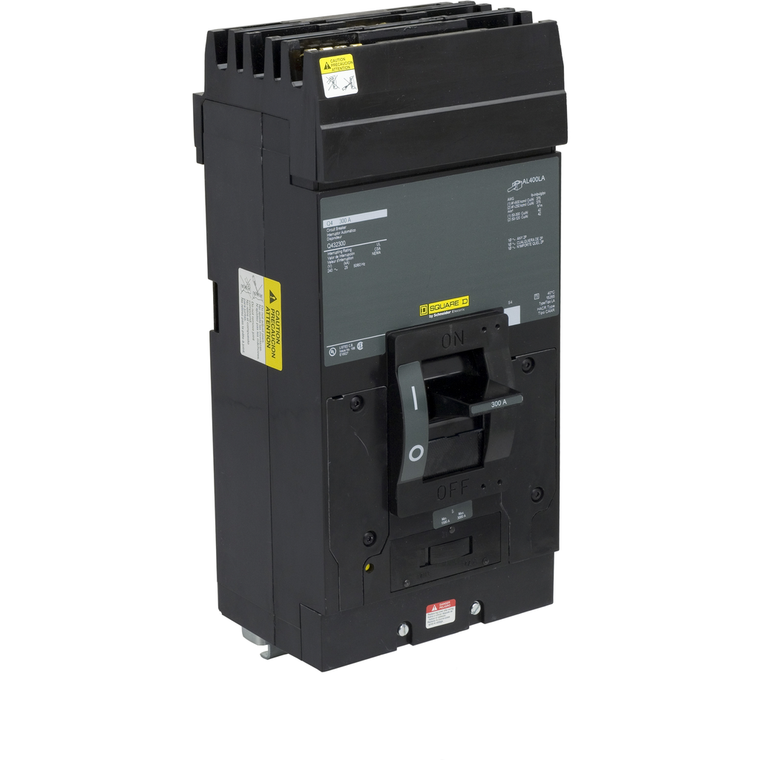

Schneider Electric Q432300 Molded Case Circuit Breaker 240V 300A

Schneider Electric Q432300 Molded Case Circuit Breaker 240V 300A

Schneider Electric
SKU:
Q432300
|
UPC:
785901649311
Availability:
Factory stock
$3,052.28
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
Circuit breaker, Q4, 300A, 3 pole, 240VAC, 25kA, I-Line, thermal magnetic
Additional Information
Magnetic Tripping Current:
3000-3000 A
Range:
PowerPact
Warranty:
18 months
Environmental Disclosure:
ENVPEP1410004EN
Circularity Profile:
N/A
Poles Description:
3P
Mercury Free:
Yes
Product Certifications:
CSA || UL Listed
Mounting Mode:
I-Line
Breaking Capacity Code:
Q4
Depth:
5.84 in
Line Rated Current:
300 A
Pvc Free:
Yes
Product Or Component Type:
circuit breaker
Halogen Content Performance:
Halogen free plastic parts product
Rohs Exemption Information:
Yes
Terminal Identifier:
AL400LA
Height:
11 in
Electrical Connection:
lugs, load || I-Line connection, line
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Magnetic Hold Current:
1500 A
Eu Rohs Directive:
Compliant with Exemptions
Sustainable Offer Status:
Green Premium product
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Trip Unit Technology:
thermal-magnetic
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Width:
6 in
Tightening Torque:
13-13 N.m 42-304 mm² (AWG 1...600 kcmil) || 13-13 N.m 42-127 mm² (AWG 1...250 kcmil)
