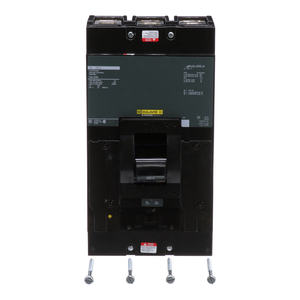

Schneider Electric Q4L2250 Molded Case Circuit Breaker 240V 250A

Schneider Electric
SKU:
Q4L2250
|
UPC:
785901649212
Availability:
Contact us to confirm availability and lead times.
$3,171.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
Square D Q4 molded case circuit breakers provide thermal magnetic protection. Q4 circuit breakers have an integral push-to-trip button that allows manual trip. They are suited for construction, commercial and industrial buildings, and control equipment panels. This unit mount two pole breaker is rated for 250A and 240VAC with a 25kA interrupting rating at 240VAC. The circuit breaker uses thermal magnetic trip technology. All Q4 molded case circuit breakers have trip indication of the operating handle in the central position when the breaker is tripped. Q4 breakers are UL 489, CSA, IEC certified.
Additional Information
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Circularity Profile:
N/A
Height:
11 in
Halogen Content Performance:
Halogen free plastic parts product
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Depth:
5.84 in
Magnetic Tripping Current:
2500-2500 A
Electrical Connection:
lugs, load || lugs, line
Eu Rohs Directive:
Compliant with Exemptions
Tightening Torque:
42-42 N.m 50-300 mm² (AWG 1...600 kcmil) || 42-42 N.m 50-120 mm² (AWG 1...250 kcmil)
Environmental Disclosure:
ENVPEP1410004EN
Mercury Free:
Yes
Warranty:
18 months
Line Rated Current:
250 A
Pvc Free:
Yes
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Width:
6 in
Magnetic Hold Current:
1250 A
Product Or Component Type:
circuit breaker
Terminal Identifier:
AL400LA
Poles Description:
2P
Trip Unit Technology:
thermal-magnetic
Product Certifications:
UL Listed || CSA || IEC
Mounting Mode:
unit mount
Breaking Capacity Code:
Q4
Rohs Exemption Information:
Yes
Sustainable Offer Status:
Green Premium product
