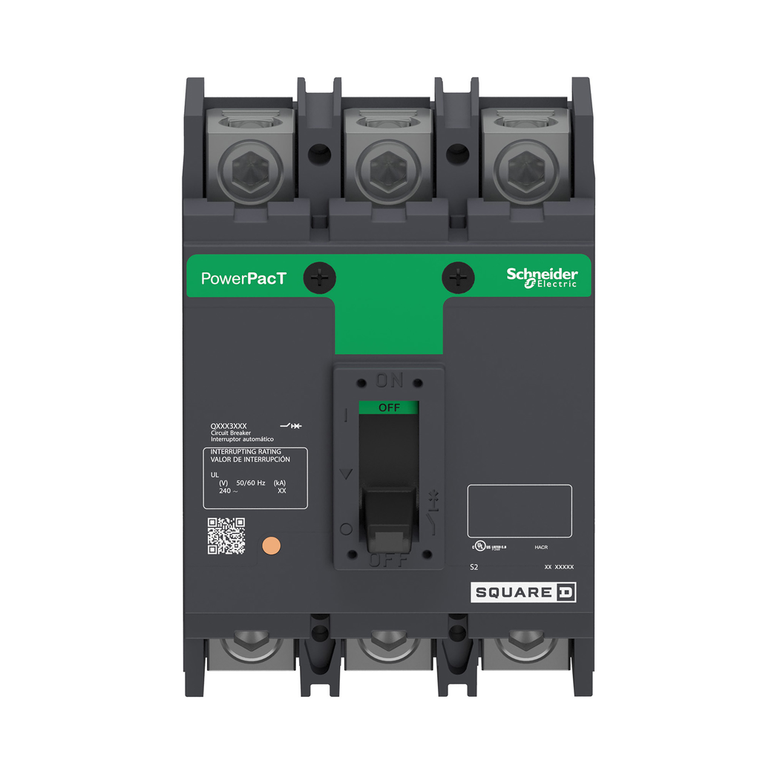

Schneider Electric QBL32200 Molded Case Circuit Breaker 240V 200A
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT Q-Frame circuit breakers are used for overcurrent protection and switching on 240VAC systems. They are rated for 240VAC operational voltage and provide thermal magnetic trip protection. PowerPacT Q circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. This unit has lugs on both the line and load sides. This PowerPacT Q, 200A, 3 pole, circuit breaker has an interrupting rating of 10kA at 208Y/120VAC and 240VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT Q circuit breakers comply to UL, CSA, and NOM standards and are IEC certified.
- Environmental Disclosure:
- ENVPEP1406032EN
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Width:
- 4.5 in
- Breaking Capacity Code:
- B
- Mounting Support:
- lug
- Breaking Capacity:
- 10 kA 120/208 V AC 50/60 Hz UL || 10 kA 240 V AC 50/60 Hz UL
- Halogen Content Performance:
- Halogen free product
- Network Frequency:
- 50/60 Hz
- Ambient Air Temperature For Operation:
- 40-70 °C
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Sustainable Offer Status:
- Green Premium product
- Warranty:
- 18 months
- Pvc Free:
- Yes
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV UL
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000
- Wire Stripping Length:
- 22 mm
- Range:
- PowerPact
- Mechanical Durability:
- 1000 cycles loaded || 5000 cycles no load
- Trip Unit Technology:
- thermal-magnetic
- Line Rated Current:
- 200 A
- Eu Rohs Directive:
- Compliant with Exemptions
- Local Signalling:
- 1 trip indicator green)
- Magnetic Hold Current:
- 1200 A
- Height:
- 6.47 in
- Magnetic Tripping Current:
- 2400-2400 A
- Mounting Mode:
- unit mount lug)
- Mercury Free:
- Yes
- Continuous Current Rating:
- 0.8
- Circularity Profile:
- N/A
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Utilisation Category:
- category A
- Electrical Connection:
- lugs, load || lugs, line
- Poles Description:
- 3P
- Device Application:
- distribution
- Tightening Torque:
- 28-28 N.m 25-150 mm² (AWG 4...300 kcmil)
- Control Type:
- operating handle
- [Ue] Rated Operational Voltage:
- 240 V AC 50/60 Hz UL
- Depth:
- 3.93 in
- Product Name:
- PowerPact Q
- Line Rated Current:
- 200-200 A
- Rohs Exemption Information:
- Yes
- Product Certifications:
- UL || CSA || NOM
- Product Or Component Type:
- circuit breaker
- Circuit Breaker Application:
- HACR rated
- Brochure:
- View
- Datasheet:
- View
