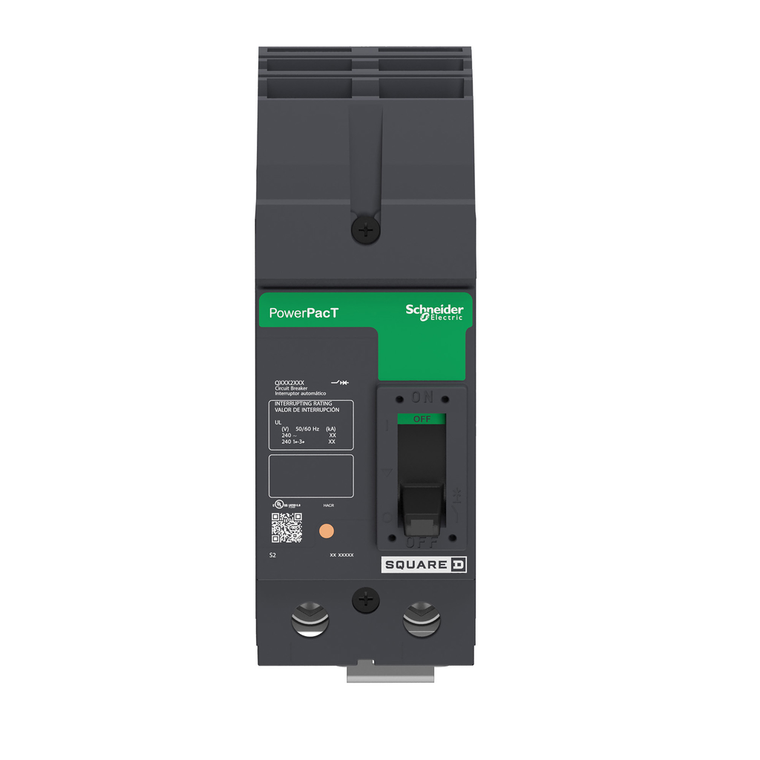

Schneider Electric QDA221102 Molded Case Circuit Breaker 240V 110A

Schneider Electric QDA221102 Molded Case Circuit Breaker 240V 110A

Schneider Electric
SKU:
QDA221102
|
UPC:
785901492870
Availability:
Contact us to confirm availability and lead times.
$1,803.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT Q-Frame circuit breakers are used for overcurrent protection and switching on 240VAC systems. They are rated for 240VAC operational voltage and provide thermal magnetic trip protection. PowerPacT Q circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT Q, 110A, 2 pole, circuit breaker has an interrupting rating of 25kA at 208Y/120VAC and 240VAC. This circuit breaker has a continuous current rating of 80% with an AC phase connection. PowerPacT Q circuit breakers comply to UL, CSA, and NOM standards and are IEC certified.
Additional Information
Product Or Component Type:
circuit breaker
Mounting Support:
bracket
Rohs Exemption Information:
Yes
Circularity Profile:
N/A
Warranty:
18 months
Line Rated Current:
110-110 A
Device Application:
distribution
Continuous Current Rating:
0.8
Halogen Content Performance:
Halogen free product
Magnetic Hold Current:
1200 A
Width:
3.00 in
Breaking Capacity:
25 kA 120/208 V AC 50/60 Hz UL || 25 kA 240 V AC 50/60 Hz UL
Control Type:
operating handle
Network Frequency:
50/60 Hz
Depth:
3.93 in
Wire Stripping Length:
22 mm
Height:
6.47 in
Sustainable Offer Status:
Green Premium product
Tightening Torque:
28-28 N.m 25-150 mm² (AWG 4...300 kcmil)
[Ue] Rated Operational Voltage:
240 V AC 50/60 Hz UL
Mounting Mode:
I-Line bracket)
Ambient Air Temperature For Operation:
40-70 °C
Pvc Free:
Yes
Trip Unit Technology:
thermal-magnetic
Local Signalling:
1 trip indicator green)
Eu Rohs Directive:
Compliant with Exemptions
Product Certifications:
UL || CSA || NOM
Magnetic Tripping Current:
2400-2400 A
Range:
PowerPact
Utilisation Category:
category A
Electrical Connection:
I-Line connection, line || lugs, load
Environmental Disclosure:
ENVPEP1406032EN
Breaking Capacity Code:
D
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000
Mercury Free:
Yes
Product Name:
PowerPact Q
Poles Description:
2P
Phase Connection:
AC
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
[Uimp] Rated Impulse Withstand Voltage:
8 kV UL
Mounting Height:
3 in
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Circuit Breaker Application:
HACR rated
Line Rated Current:
110 A
Mechanical Durability:
1000 cycles loaded || 5000 cycles no load
