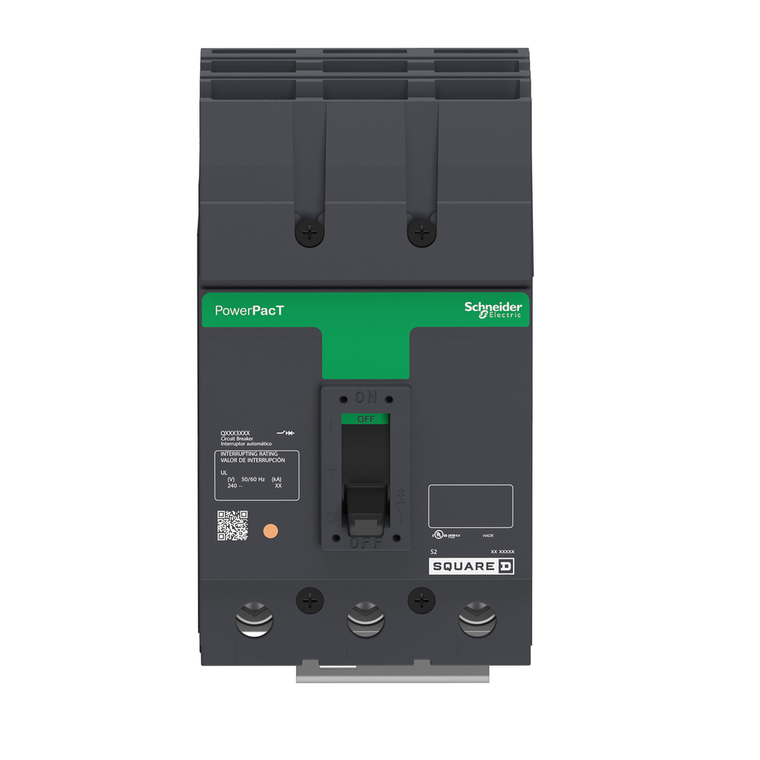

Schneider Electric QDA32200 Molded Case Circuit Breaker 240V 200A
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT Q-Frame circuit breakers are used for overcurrent protection and switching on 240VAC systems. They are rated for 240VAC operational voltage and provide thermal magnetic trip protection. PowerPacT Q circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT Q, 200A, 3 pole, circuit breaker has an interrupting rating of 25kA at 208Y/120VAC and 240VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT Q circuit breakers comply to UL, CSA, and NOM standards and are IEC certified.
- Range:
- PowerPact
- Mercury Free:
- Yes
- Eu Rohs Directive:
- Compliant with Exemptions
- Breaking Capacity:
- 25 kA 120/208 V AC 50/60 Hz UL || 25 kA 240 V AC 50/60 Hz UL
- Continuous Current Rating:
- 0.8
- Tightening Torque:
- 28-28 N.m 25-150 mm² (AWG 4...300 kcmil)
- Environmental Disclosure:
- ENVPEP1406032EN
- Sustainable Offer Status:
- Green Premium product
- Mechanical Durability:
- 1000 cycles loaded || 5000 cycles no load
- Height:
- 6.47 in
- Line Rated Current:
- 200-200 A
- Local Signalling:
- 1 trip indicator green)
- Product Certifications:
- UL || CSA || NOM
- Product Or Component Type:
- circuit breaker
- Warranty:
- 18 months
- Product Name:
- PowerPact Q
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV UL
- Poles Description:
- 3P
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000
- [Ue] Rated Operational Voltage:
- 240 V AC 50/60 Hz UL
- Mounting Support:
- bracket
- Phase Connection:
- ABC
- Circularity Profile:
- N/A
- Magnetic Tripping Current:
- 2400-2400 A
- Mounting Mode:
- I-Line bracket)
- Trip Unit Technology:
- thermal-magnetic
- Halogen Content Performance:
- Halogen free product
- Rohs Exemption Information:
- Yes
- Pvc Free:
- Yes
- Circuit Breaker Application:
- HACR rated
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Ambient Air Temperature For Operation:
- 40-70 °C
- Control Type:
- operating handle
- Utilisation Category:
- category A
- Breaking Capacity Code:
- D
- Magnetic Hold Current:
- 1200 A
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Width:
- 4.5 in
- Electrical Connection:
- I-Line connection, line || lugs, load
- Network Frequency:
- 50/60 Hz
- Wire Stripping Length:
- 22 mm
- Line Rated Current:
- 200 A
- Depth:
- 3.93 in
- Device Application:
- distribution
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Mounting Height:
- 4.5 in
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
