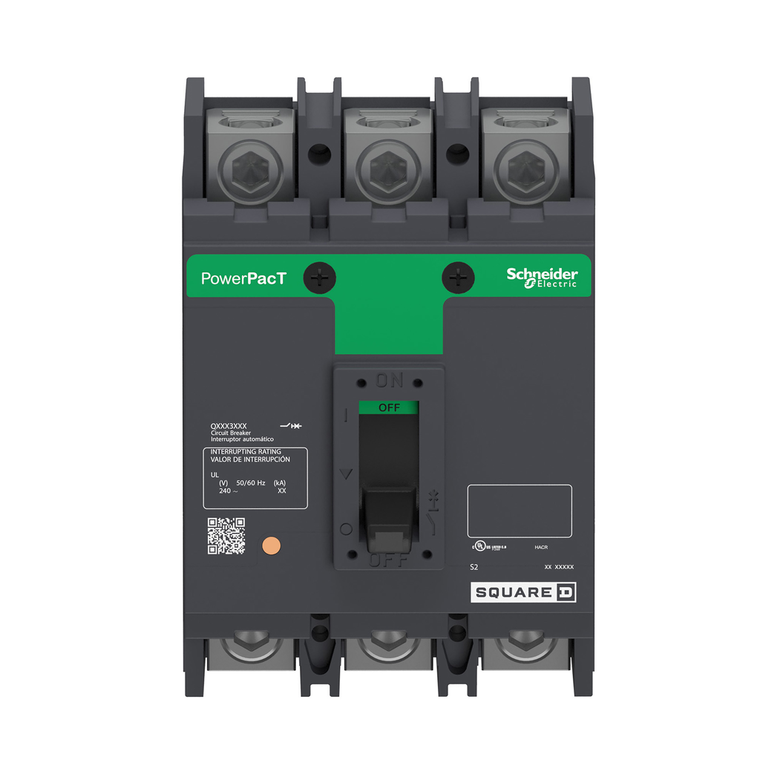

Schneider Electric QDL32070 Molded Case Circuit Breaker 240V 70A
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT Q-Frame circuit breakers are used for overcurrent protection and switching on 240VAC systems. They are rated for 240VAC operational voltage and provide thermal magnetic trip protection. PowerPacT Q circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. This unit has lugs on both the line and load sides. This PowerPacT Q, 70A, 3 pole, circuit breaker has an interrupting rating of 25kA at 208Y/120VAC and 240VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT Q circuit breakers comply to UL, CSA, and NOM standards and are IEC certified.
- Local Signalling:
- 1 trip indicator green)
- Product Name:
- PowerPact Q
- Product Or Component Type:
- circuit breaker
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000
- Mechanical Durability:
- 1000 cycles loaded || 5000 cycles no load
- Ambient Air Temperature For Operation:
- 40-70 °C
- Line Rated Current:
- 70-70 A
- Mounting Support:
- lug
- Eu Rohs Directive:
- Compliant with Exemptions
- Range:
- PowerPact
- Wire Stripping Length:
- 22 mm
- Rohs Exemption Information:
- Yes
- Utilisation Category:
- category A
- Sustainable Offer Status:
- Green Premium product
- Magnetic Hold Current:
- 1000 A
- Poles Description:
- 3P
- Control Type:
- operating handle
- Environmental Disclosure:
- ENVPEP1406032EN
- Circuit Breaker Application:
- HACR rated
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV UL
- Device Application:
- distribution
- Halogen Content Performance:
- Halogen free product
- Mounting Mode:
- unit mount lug)
- Continuous Current Rating:
- 0.8
- Height:
- 6.47 in
- Line Rated Current:
- 70 A
- Width:
- 4.5 in
- Depth:
- 3.93 in
- Breaking Capacity:
- 25 kA 120/208 V AC 50/60 Hz UL || 25 kA 240 V AC 50/60 Hz UL
- [Ue] Rated Operational Voltage:
- 240 V AC 50/60 Hz UL
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Product Certifications:
- UL || CSA || NOM
- Warranty:
- 18 months
- Breaking Capacity Code:
- D
- Electrical Connection:
- lugs, load || lugs, line
- Network Frequency:
- 50/60 Hz
- Circularity Profile:
- N/A
- Trip Unit Technology:
- thermal-magnetic
- Tightening Torque:
- 28-28 N.m 25-150 mm² (AWG 4...300 kcmil)
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Mercury Free:
- Yes
- Pvc Free:
- Yes
- Magnetic Tripping Current:
- 1800-1800 A
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
