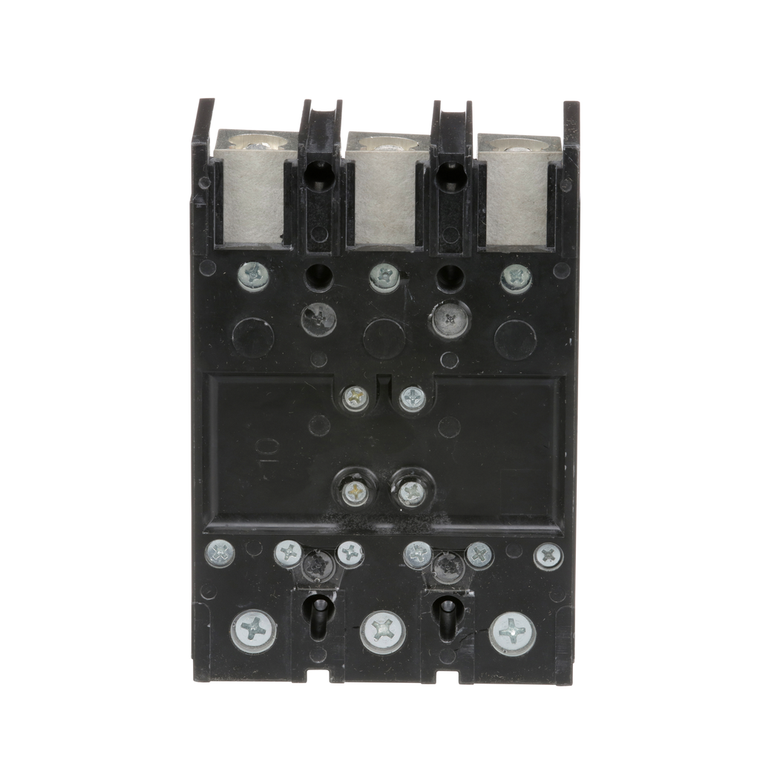

Schneider Electric QDL32150 Molded Case Circuit Breaker 240V 150A

Schneider Electric QDL32150 Molded Case Circuit Breaker 240V 150A

Schneider Electric
SKU:
QDL32150
|
UPC:
785901662648
Availability:
Contact us to confirm availability and lead times.
$1,784.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT Q-Frame circuit breakers are used for overcurrent protection and switching on 240VAC systems. They are rated for 240VAC operational voltage and provide thermal magnetic trip protection. PowerPacT Q circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. This unit has lugs on both the line and load sides. This PowerPacT Q, 150A, 3 pole, circuit breaker has an interrupting rating of 25kA at 208Y/120VAC and 240VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT Q circuit breakers comply to UL, CSA, and NOM standards and are IEC certified.
Additional Information
Continuous Current Rating:
0.8
Product Name:
PowerPact Q
Circuit Breaker Application:
HACR rated
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000
Electrical Connection:
lugs, load || lugs, line
Product Or Component Type:
circuit breaker
Magnetic Hold Current:
1200 A
Pvc Free:
Yes
Breaking Capacity:
25 kA 120/208 V AC 50/60 Hz UL || 25 kA 240 V AC 50/60 Hz UL
[Uimp] Rated Impulse Withstand Voltage:
8 kV UL
Magnetic Tripping Current:
2400-2400 A
Mounting Support:
lug
Wire Stripping Length:
22 mm
Local Signalling:
1 trip indicator green)
[Ue] Rated Operational Voltage:
240 V AC 50/60 Hz UL
Mercury Free:
Yes
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Utilisation Category:
category A
Rohs Exemption Information:
Yes
Sustainable Offer Status:
Green Premium product
Warranty:
18 months
Circularity Profile:
N/A
Mounting Mode:
unit mount lug)
Environmental Disclosure:
ENVPEP1406032EN
Depth:
3.93 in
Poles Description:
3P
Mechanical Durability:
1000 cycles loaded || 5000 cycles no load
Height:
6.47 in
Trip Unit Technology:
thermal-magnetic
Ambient Air Temperature For Operation:
40-70 °C
Eu Rohs Directive:
Compliant with Exemptions
Product Certifications:
UL || CSA || NOM
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Halogen Content Performance:
Halogen free product
Tightening Torque:
28-28 N.m 25-150 mm² (AWG 4...300 kcmil)
Control Type:
operating handle
Network Frequency:
50/60 Hz
Range:
PowerPact
Breaking Capacity Code:
D
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Line Rated Current:
150 A
Device Application:
distribution
Line Rated Current:
150-150 A
Width:
4.5 in
