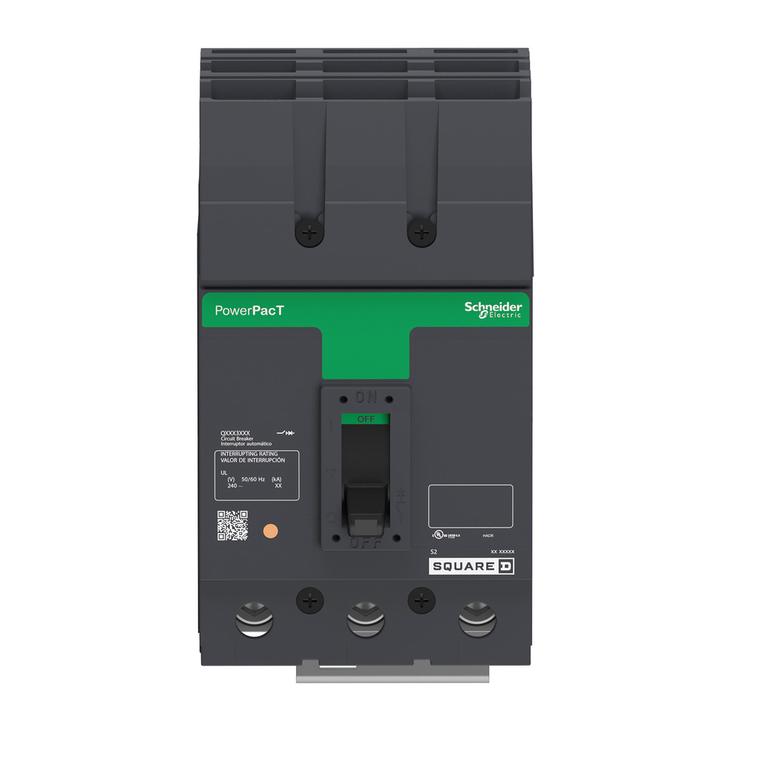

Schneider Electric QGA32200YP Molded Case Circuit Breaker 240V 200A
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT Q-Frame circuit breakers are used for overcurrent protection and switching on 240VAC systems. They are rated for 240VAC operational voltage and provide thermal magnetic trip protection. PowerPacT Q circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT Q, 200A, 3 pole, circuit breaker has an interrupting rating of 65kA at 208Y/120VAC and 240VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. This unit includes a factory installed handle padlocking device, off or on. PowerPacT Q circuit breakers comply to UL, CSA, and NOM standards and are IEC certified.
- Circularity Profile:
- N/A
- Mercury Free:
- Yes
- Width:
- 4.5 in
- Eu Rohs Directive:
- Compliant with Exemptions
- Sustainable Offer Status:
- Green Premium product
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV UL
- Product Certifications:
- UL || CSA || NOM
- Magnetic Tripping Current:
- 2400-2400 A
- Pvc Free:
- Yes
- Mechanical Durability:
- 1000 cycles loaded || 5000 cycles no load
- Accessory / Separate Part Type:
- padlocking device ON and OFF end
- Product Or Component Type:
- circuit breaker
- Height:
- 6.47 in
- Line Rated Current:
- 200 A
- Continuous Current Rating:
- 0.8
- Poles Description:
- 3P
- Local Signalling:
- 1 trip indicator green)
- [Ue] Rated Operational Voltage:
- 240 V AC 50/60 Hz UL
- Warranty:
- 18 months
- Mounting Support:
- bracket
- Circuit Breaker Application:
- HACR rated
- Magnetic Hold Current:
- 1200 A
- Wire Stripping Length:
- 22 mm
- Breaking Capacity Code:
- G
- Depth:
- 3.93 in
- Line Rated Current:
- 200-200 A
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Electrical Connection:
- I-Line connection, line || lugs, load
- Network Frequency:
- 50/60 Hz
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Ambient Air Temperature For Operation:
- 40-70 °C
- Environmental Disclosure:
- ENVPEP1406032EN
- Range:
- PowerPact
- Control Type:
- operating handle
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000
- Product Name:
- PowerPact Q
- Device Application:
- distribution
- Halogen Content Performance:
- Halogen free product
- Phase Connection:
- ABC
- Rohs Exemption Information:
- Yes
- Utilisation Category:
- category A
- Trip Unit Technology:
- thermal-magnetic
- Mounting Height:
- 4.5 in
- Tightening Torque:
- 28-28 N.m 25-150 mm² (AWG 4...300 kcmil)
- Mounting Mode:
- I-Line bracket)
- Breaking Capacity:
- 65 kA 120/208 V AC 50/60 Hz UL || 65 kA 240 V AC 50/60 Hz UL
- Catalog:
- View
- Datasheet:
- View
