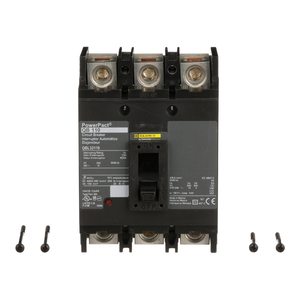

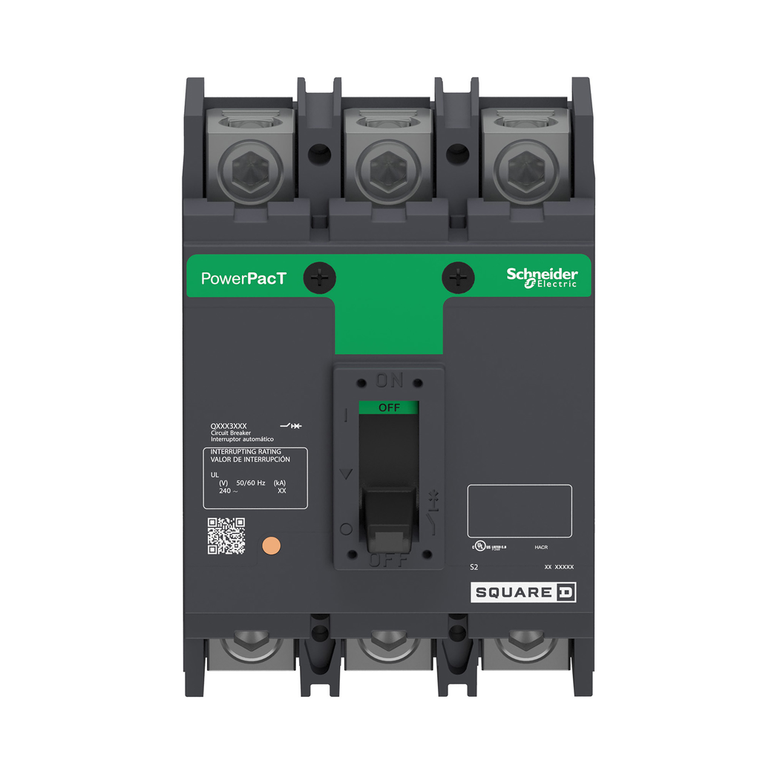

Schneider Electric QGL32110 Molded Case Circuit Breaker 240V 110A

Schneider Electric QGL32110 Molded Case Circuit Breaker 240V 110A

Schneider Electric
SKU:
QGL32110
|
UPC:
785901415350
Availability:
Contact us to confirm availability and lead times.
$3,663.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT Q-Frame circuit breakers are used for overcurrent protection and switching on 240VAC systems. They are rated for 240VAC operational voltage and provide thermal magnetic trip protection. PowerPacT Q circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. This unit has lugs on both the line and load sides. This PowerPacT Q, 110A, 3 pole, circuit breaker has an interrupting rating of 65kA at 208Y/120VAC and 240VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT Q circuit breakers comply to UL, CSA, and NOM standards and are IEC certified.
Additional Information
Height:
6.47 in
[Uimp] Rated Impulse Withstand Voltage:
8 kV UL
Width:
4.5 in
Eu Rohs Directive:
Compliant with Exemptions
Utilisation Category:
category A
Product Or Component Type:
circuit breaker
Circularity Profile:
N/A
Mechanical Durability:
1000 cycles loaded || 5000 cycles no load
Circuit Breaker Application:
HACR rated
Breaking Capacity:
65 kA 120/208 V AC 50/60 Hz UL || 65 kA 240 V AC 50/60 Hz UL
[Ue] Rated Operational Voltage:
240 V AC 50/60 Hz UL
Network Frequency:
50/60 Hz
Poles Description:
3P
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Control Type:
operating handle
Mounting Support:
lug
Breaking Capacity Code:
G
Warranty:
18 months
Wire Stripping Length:
22 mm
Line Rated Current:
110 A
Magnetic Tripping Current:
2400-2400 A
Environmental Disclosure:
ENVPEP1406032EN
Line Rated Current:
110-110 A
Halogen Content Performance:
Halogen free product
Mounting Mode:
unit mount lug)
Electrical Connection:
lugs, load || lugs, line
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Pvc Free:
Yes
Tightening Torque:
28-28 N.m 25-150 mm² (AWG 4...300 kcmil)
Mercury Free:
Yes
Depth:
3.93 in
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000
Product Certifications:
UL || CSA || NOM
Trip Unit Technology:
thermal-magnetic
Ambient Air Temperature For Operation:
40-70 °C
Sustainable Offer Status:
Green Premium product
Local Signalling:
1 trip indicator green)
Rohs Exemption Information:
Yes
Device Application:
distribution
Range:
PowerPact
Product Name:
PowerPact Q
Continuous Current Rating:
0.8
Magnetic Hold Current:
1200 A
