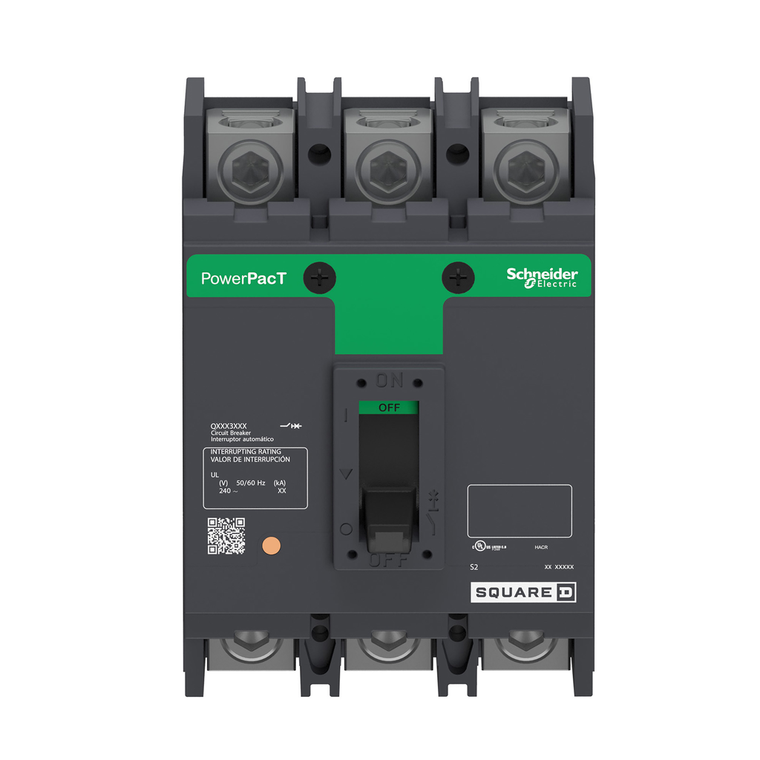

Schneider Electric QGL32175 Molded Case Circuit Breaker 240V 175A
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT Q-Frame circuit breakers are used for overcurrent protection and switching on 240VAC systems. They are rated for 240VAC operational voltage and provide thermal magnetic trip protection. PowerPacT Q circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. This unit has lugs on both the line and load sides. This PowerPacT Q, 175A, 3 pole, circuit breaker has an interrupting rating of 65kA at 208Y/120VAC and 240VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT Q circuit breakers comply to UL, CSA, and NOM standards and are IEC certified.
- Sustainable Offer Status:
- Green Premium product
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Control Type:
- operating handle
- Trip Unit Technology:
- thermal-magnetic
- Circularity Profile:
- N/A
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV UL
- Range:
- PowerPact
- Utilisation Category:
- category A
- Device Application:
- distribution
- Halogen Content Performance:
- Halogen free product
- Height:
- 6.47 in
- Rohs Exemption Information:
- Yes
- Mechanical Durability:
- 1000 cycles loaded || 5000 cycles no load
- Ambient Air Temperature For Operation:
- 40-70 °C
- Electrical Connection:
- lugs, load || lugs, line
- Continuous Current Rating:
- 0.8
- Depth:
- 3.93 in
- Product Name:
- PowerPact Q
- [Ue] Rated Operational Voltage:
- 240 V AC 50/60 Hz UL
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Local Signalling:
- 1 trip indicator green)
- Product Certifications:
- UL || CSA || NOM
- Tightening Torque:
- 28-28 N.m 25-150 mm² (AWG 4...300 kcmil)
- Wire Stripping Length:
- 22 mm
- Environmental Disclosure:
- ENVPEP1406032EN
- Eu Rohs Directive:
- Compliant with Exemptions
- Magnetic Hold Current:
- 1200 A
- Warranty:
- 18 months
- Circuit Breaker Application:
- HACR rated
- Pvc Free:
- Yes
- Mounting Mode:
- unit mount lug)
- Mercury Free:
- Yes
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000
- Mounting Support:
- lug
- Network Frequency:
- 50/60 Hz
- Product Or Component Type:
- circuit breaker
- Width:
- 4.5 in
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Line Rated Current:
- 175 A
- Poles Description:
- 3P
- Breaking Capacity:
- 65 kA 120/208 V AC 50/60 Hz UL || 65 kA 240 V AC 50/60 Hz UL
- Breaking Capacity Code:
- G
- Line Rated Current:
- 175-175 A
- Magnetic Tripping Current:
- 2400-2400 A
