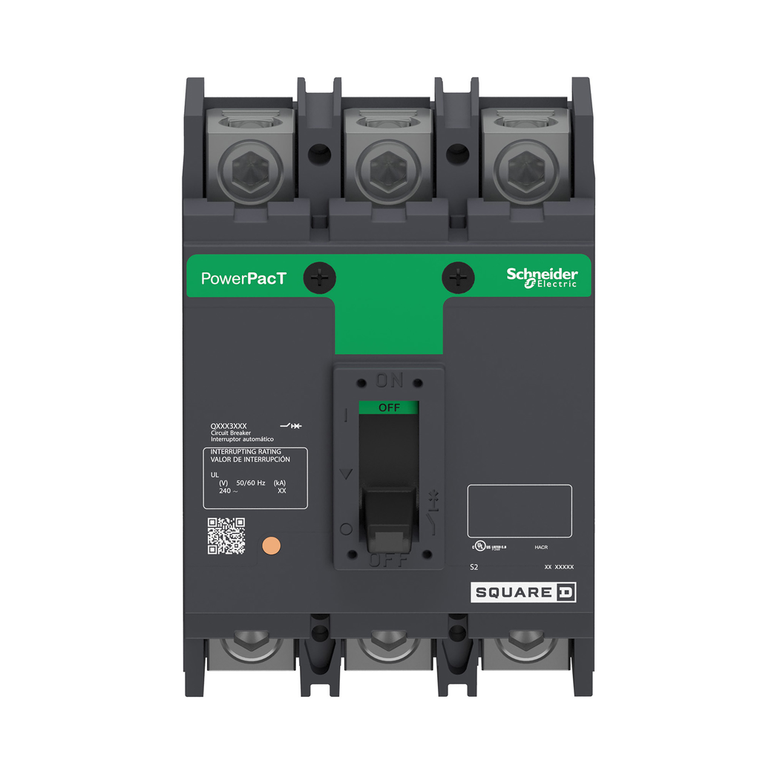

Schneider Electric QGL32200 Molded Case Circuit Breaker 240V 200A

Schneider Electric QGL32200 Molded Case Circuit Breaker 240V 200A

Schneider Electric
SKU:
QGL32200
|
UPC:
785901705642
Availability:
Factory stock
$1,556.40
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT Q-Frame circuit breakers are used for overcurrent protection and switching on 240VAC systems. They are rated for 240VAC operational voltage and provide thermal magnetic trip protection. PowerPacT Q circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. This unit has lugs on both the line and load sides. This PowerPacT Q, 200A, 3 pole, circuit breaker has an interrupting rating of 65kA at 208Y/120VAC and 240VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT Q circuit breakers comply to UL, CSA, and NOM standards and are IEC certified.
Additional Information
Circularity Profile:
N/A
Line Rated Current:
200 A
Mounting Mode:
unit mount lug)
Poles Description:
3P
Network Frequency:
50/60 Hz
Warranty:
18 months
Mercury Free:
Yes
Wire Stripping Length:
22 mm
Utilisation Category:
category A
Circuit Breaker Application:
HACR rated
Pvc Free:
Yes
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000
Trip Unit Technology:
thermal-magnetic
Magnetic Tripping Current:
2400-2400 A
Rohs Exemption Information:
Yes
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Mechanical Durability:
1000 cycles loaded || 5000 cycles no load
Line Rated Current:
200-200 A
Continuous Current Rating:
0.8
[Ue] Rated Operational Voltage:
240 V AC 50/60 Hz UL
Eu Rohs Directive:
Compliant with Exemptions
Breaking Capacity:
65 kA 120/208 V AC 50/60 Hz UL || 65 kA 240 V AC 50/60 Hz UL
Product Name:
PowerPact Q
Sustainable Offer Status:
Green Premium product
Depth:
3.93 in
Environmental Disclosure:
ENVPEP1406032EN
Height:
6.47 in
Electrical Connection:
lugs, load || lugs, line
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Range:
PowerPact
Width:
4.5 in
Breaking Capacity Code:
G
[Uimp] Rated Impulse Withstand Voltage:
8 kV UL
Control Type:
operating handle
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Product Certifications:
UL || CSA || NOM
Product Or Component Type:
circuit breaker
Magnetic Hold Current:
1200 A
Tightening Torque:
28-28 N.m 25-150 mm² (AWG 4...300 kcmil)
Ambient Air Temperature For Operation:
40-70 °C
Device Application:
distribution
Halogen Content Performance:
Halogen free product
Local Signalling:
1 trip indicator green)
Mounting Support:
lug
