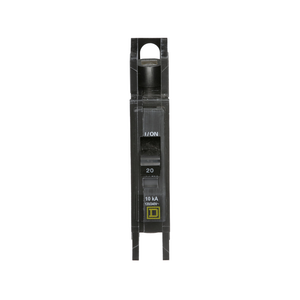

Schneider Electric QHB1201021 Miniature Circuit Breaker 120/240V 20A

Schneider Electric QHB1201021 Miniature Circuit Breaker 120/240V 20A

Schneider Electric
SKU:
QHB1201021
|
UPC:
785901585725
Availability:
Contact us to confirm availability and lead times.
$311.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
QO and QOB one, two, and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 1 pole QO circuit breaker is rated at 20A at 120/240VAC. This unit provides 65kA breaking capacity and is bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product includes an AC shunt trip. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
Additional Information
Halogen Content Performance:
Halogen free product
Width:
38 mm
Electrical Connection:
pressure plate
Tightening Torque:
4.6-4.6 N.m
Circuit Breaker Type:
standard
Warranty:
18 months
Line Rated Current:
20 A
Product Certifications:
UL Listed || CSA
[Ue] Rated Operational Voltage:
120/240 V AC || 120 V AC
Eu Rohs Directive:
Compliant with Exemptions
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Net Weight:
0.322 kg
Accessory / Separate Part Type:
shunt trip 120/208/240 V AC
Breaking Capacity:
65 kA 120/240 V AC 50/60 Hz || 65 kA 120 V AC 50/60 Hz
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Depth:
74 mm
Mounting Mode:
bolt-on
Ambient Air Temperature For Operation:
40 °C
Number Of Spaces Required:
2
Poles Description:
1P
Circularity Profile:
N/A
Product Or Component Type:
miniature circuit-breaker
Toxic Heavy Metal Free:
Yes
Range Of Product:
QO
Circuit Breaker Application:
HACR and Switching Duty rated
Height:
76 mm
Sustainable Offer Status:
Green Premium product
Awg Gauge:
AWG 14...AWG 8 copper or aluminium
Mercury Free:
Yes
Rohs Exemption Information:
Yes
