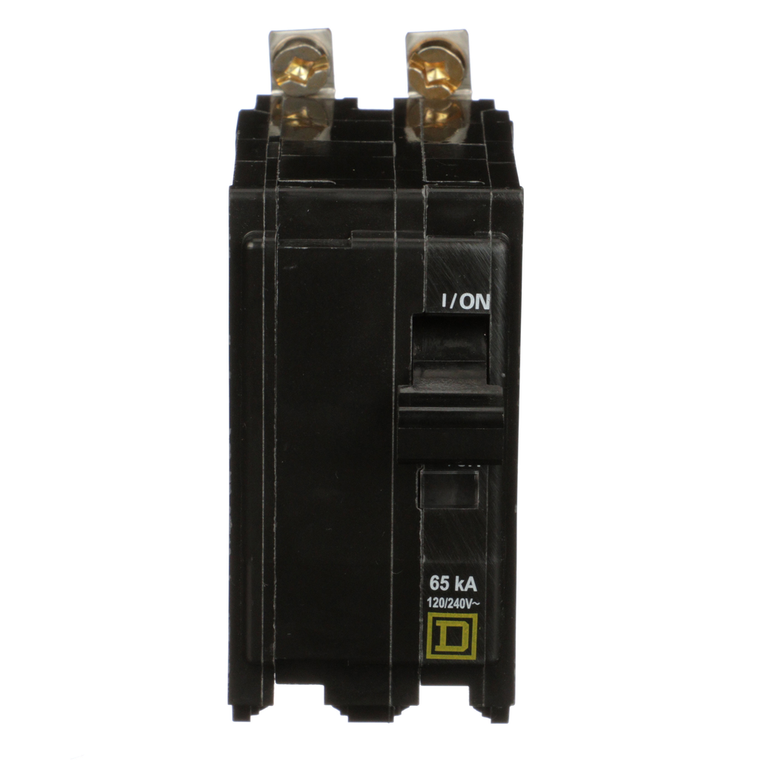

Schneider Electric QHB215 Miniature Circuit Breaker 120/240V 15A.
Schneider Electric
$342.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
QO and QOB one, two, and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 2 pole QO circuit breaker is rated at 15A at 120/240VAC. This unit provides 65kA breaking capacity and is bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
- Mercury Free:
- Yes
- Circularity Profile:
- N/A
- Mounting Mode:
- bolt-on
- Breaking Capacity:
- 65 kA 120/240 V AC 50/60 Hz || 65 kA 120 V AC 50/60 Hz
- Tightening Torque:
- 4.6-4.6 N.m
- Ambient Air Temperature For Operation:
- 40 °C
- Product Or Component Type:
- miniature circuit-breaker
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Height:
- 76 mm
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Halogen Content Performance:
- Halogen free product
- Eu Rohs Directive:
- Compliant with Exemptions
- Circuit Breaker Type:
- standard
- Warranty:
- 18 months
- Depth:
- 74 mm
- Range Of Product:
- QO
- Line Rated Current:
- 15 A
- Rohs Exemption Information:
- Yes
- Electrical Connection:
- pressure plate
- Toxic Heavy Metal Free:
- Yes
- Sustainable Offer Status:
- Green Premium product
- Net Weight:
- 0.277 kg
- Product Certifications:
- UL Listed || CSA
- Poles Description:
- 2P
- Number Of Spaces Required:
- 2
- Awg Gauge:
- AWG 14...AWG 8 copper or aluminium
- Circuit Breaker Application:
- HACR rated
- [Ue] Rated Operational Voltage:
- 120/240 V AC || 120 V AC
- Width:
- 38 mm
