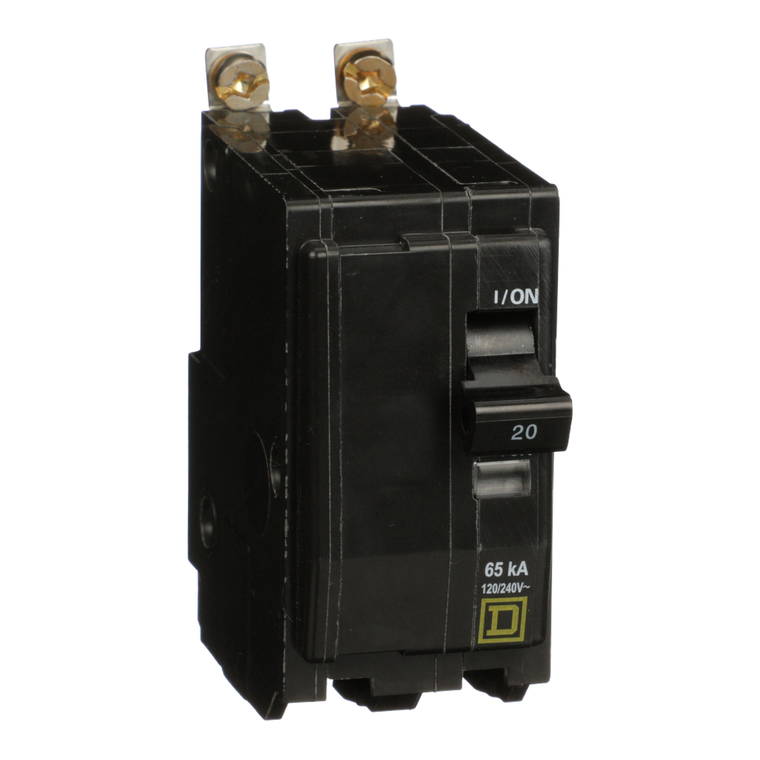

Schneider Electric QHB220FT Miniature Circuit Breaker 120/240V 20A
Schneider Electric
$616.50
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric QHB220FT Miniature Circuit Breaker 120/240V 20A
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 2 pole QO circuit breaker is rated at 20A at 120/240VAC. This unit provides 65kA breaking capacity and bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product includes a fungal treatment. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555
- Product Or Component Type:
- miniature circuit-breaker
- Height:
- 76 mm
- Tightening Torque:
- 4.6-4.6 N.m
- Circuit Breaker Application:
- HACR rated
- Line Rated Current:
- 20 A
- [Ue] Rated Operational Voltage:
- 120/240 V AC || 120 V AC
- Electrical Connection:
- pressure plate
- Number Of Spaces Required:
- 2
- Breaking Capacity:
- 65 kA 120/240 V AC 50/60 Hz || 65 kA 120 V AC 50/60 Hz
- Ambient Air Temperature For Operation:
- 40 °C
- Eu Rohs Directive:
- Under investigation
- Range Of Product:
- QO
- Circuit Breaker Type:
- standard
- Mounting Mode:
- bolt-on
- Awg Gauge:
- AWG 14...AWG 8 copper or aluminium
- Width:
- 38 mm
- Depth:
- 74 mm
- Warranty:
- 18 months
- Net Weight:
- 0.254 kg
- Poles Description:
- 2P
- Product Certifications:
- UL Listed || CSA
- Datasheet:
- View
