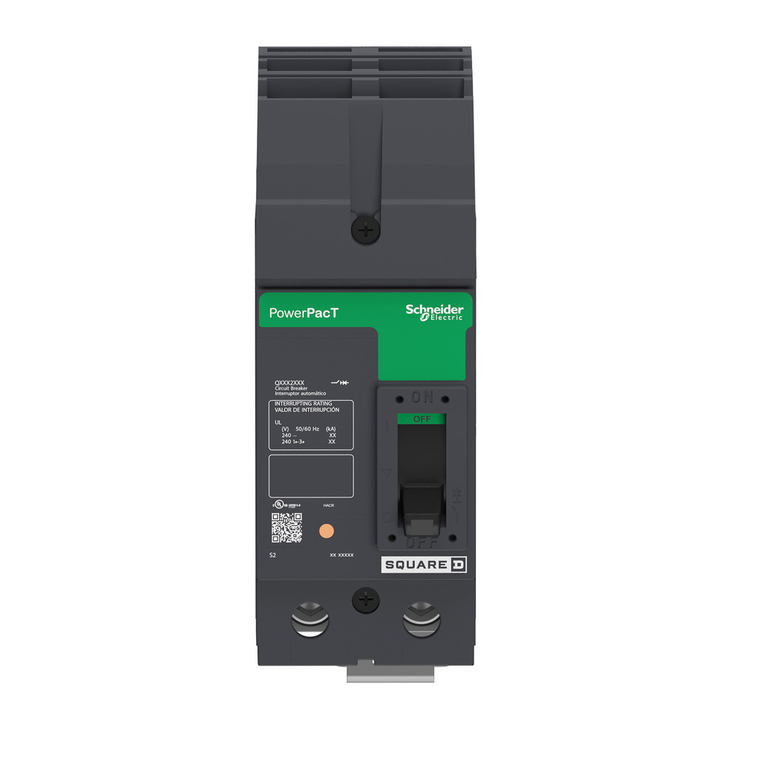

Schneider Electric QJA221502 Molded Case Circuit Breaker 240V 150A

(No reviews yet) Write a Review

Write a Review

Schneider Electric QJA221502 Molded Case Circuit Breaker 240V 150A

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

QJA221502

UPC:

785901708841

MPN:

Condition:

New

Standards:

UL || CSA || NEMA || NOM-003-SCFI-2000

Rohs Exemption Information:

Yes

Line Rated Current:

150-150 A

Mounting Support:

bracket

Control Type:

operating handle

Range:

PowerPact

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Warranty:

18 months

[Uimp] Rated Impulse Withstand Voltage:

8 kV UL

Environmental Disclosure:

ENVPEP1406032EN

Ambient Air Temperature For Operation:

40-70 °C

Pvc Free:

Yes

Product Certifications:

UL || CSA || NOM

Product Name:

PowerPact Q

Poles Description:

2P

Phase Connection:

AC

Local Signalling:

1 trip indicator green)

Mercury Free:

Yes

Wire Stripping Length:

22 mm

Trip Unit Technology:

thermal-magnetic

Device Application:

distribution

Magnetic Tripping Current:

2400-2400 A

Mounting Height:

3 in

Mechanical Durability:

1000 cycles loaded || 5000 cycles no load

[Ue] Rated Operational Voltage:

240 V AC 50/60 Hz UL

Mounting Mode:

I-Line bracket)

Halogen Content Performance:

Halogen free product

Depth:

3.93 in

Height:

6.47 in

Line Rated Current:

150 A

Electrical Connection:

I-Line connection, line || lugs, load

Breaking Capacity Code:

J

Network Frequency:

50/60 Hz

Product Or Component Type:

circuit breaker

Width:

3.00 in

Breaking Capacity:

100 kA 120/208 V AC 50/60 Hz UL || 100 kA 240 V AC 50/60 Hz UL

Circularity Profile:

N/A

Utilisation Category:

category A

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Magnetic Hold Current:

1200 A

California Proposition 65:

WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information

Tightening Torque:

28-28 N.m 25-150 mm² (AWG 4...300 kcmil)

Sustainable Offer Status:

Green Premium product

Eu Rohs Directive:

Compliant with Exemptions

Continuous Current Rating:

0.8
