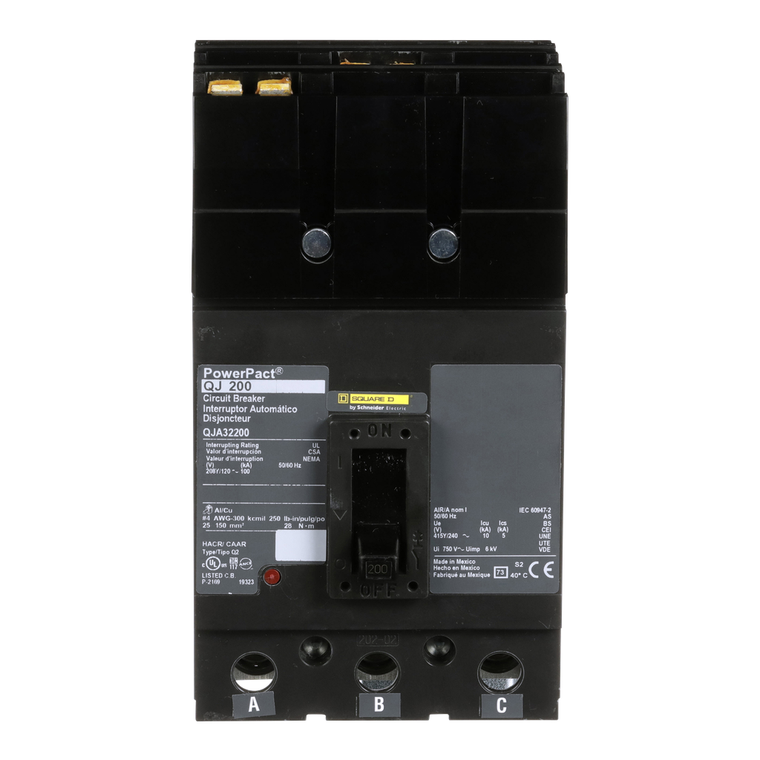

Schneider Electric QJA32200 Molded Case Circuit Breaker 240V 200A

Schneider Electric QJA32200 Molded Case Circuit Breaker 240V 200A

Schneider Electric
SKU:
QJA32200
|
UPC:
785901705673
Availability:
Factory stock
$2,196.62
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT Q-Frame circuit breakers are used for overcurrent protection and switching on 240VAC systems. They are rated for 240VAC operational voltage and provide thermal magnetic trip protection. PowerPacT Q circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT Q, 200A, 3 pole, circuit breaker has an interrupting rating of 100kA at 208Y/120VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT Q circuit breakers comply to UL, CSA, and NOM standards and are IEC certified.
Additional Information
Wire Stripping Length:
22 mm
Breaking Capacity Code:
J
Ambient Air Temperature For Operation:
40-70 °C
Mounting Mode:
I-Line bracket)
Pvc Free:
Yes
Poles Description:
3P
Product Certifications:
UL || CSA || NOM
Control Type:
operating handle
Local Signalling:
1 trip indicator green)
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Warranty:
18 months
Tightening Torque:
28-28 N.m 25-150 mm² (AWG 4...300 kcmil)
[Uimp] Rated Impulse Withstand Voltage:
8 kV UL
Product Name:
PowerPact Q
Width:
4.5 in
Eu Rohs Directive:
Compliant with Exemptions
Mechanical Durability:
1000 cycles loaded || 5000 cycles no load
Product Or Component Type:
circuit breaker
Line Rated Current:
200 A
Phase Connection:
ABC
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
[Ue] Rated Operational Voltage:
240 V AC 50/60 Hz UL
Line Rated Current:
200-200 A
Continuous Current Rating:
0.8
Height:
6.47 in
Utilisation Category:
category A
Circularity Profile:
N/A
Halogen Content Performance:
Halogen free product
Trip Unit Technology:
thermal-magnetic
Mounting Height:
4.5 in
Electrical Connection:
I-Line connection, line || lugs, load
Environmental Disclosure:
ENVPEP1406032EN
Mercury Free:
Yes
Magnetic Hold Current:
1200 A
Rohs Exemption Information:
Yes
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Sustainable Offer Status:
Green Premium product
Breaking Capacity:
100 kA 120/208 V AC 50/60 Hz UL
Depth:
3.93 in
Device Application:
distribution
Mounting Support:
bracket
Range:
PowerPact
Magnetic Tripping Current:
2400-2400 A
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000
Network Frequency:
50/60 Hz
