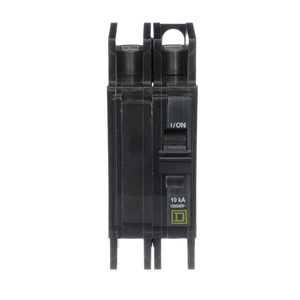

Schneider Electric QOUR210 Miniature Circuit Breaker 120/240V 10A
Schneider Electric
Schneider Electric QOB110 Miniature Circuit Breaker 120/240V 10A
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
QO and QOB one, two, and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 1 pole QO circuit breaker is rated at 10A at 120/240VAC. This unit provides 10kA breaking capacity and is bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
- Line Rated Current:
- 0.416666666666667
- Ambient Air Temperature For Operation:
- 40 °C
- Width:
- 19 mm
- Circuit Breaker Application:
- HACR rated
- Eu Rohs Directive:
- Compliant with Exemptions
- Warranty:
- 18 months
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Height:
- 76 mm
- Depth:
- 74 mm
- Circuit Breaker Type:
- standard
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Mounting Mode:
- bolt-on
- Rohs Exemption Information:
- Yes
- Electrical Connection:
- pressure plate
- Product Or Component Type:
- miniature circuit-breaker
- Range Of Product:
- QO
- [Ue] Rated Operational Voltage:
- 120/240 V AC || 120 V AC
- Number Of Spaces Required:
- 1
- Poles Description:
- 1P
- Net Weight:
- 0.132 kg
- Mercury Free:
- Yes
- Toxic Heavy Metal Free:
- Yes
- Breaking Capacity:
- 10 kA 120/240 V AC 50/60 Hz || 10 kA 120 V AC 50/60 Hz
- Product Certifications:
- UL Listed || CSA
- Circularity Profile:
- N/A
- Halogen Content Performance:
- Halogen free product
- Tightening Torque:
- 4-4 N.m
- Awg Gauge:
- AWG 14...AWG 8 copper or aluminium
- Sustainable Offer Status:
- Green Premium product
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
