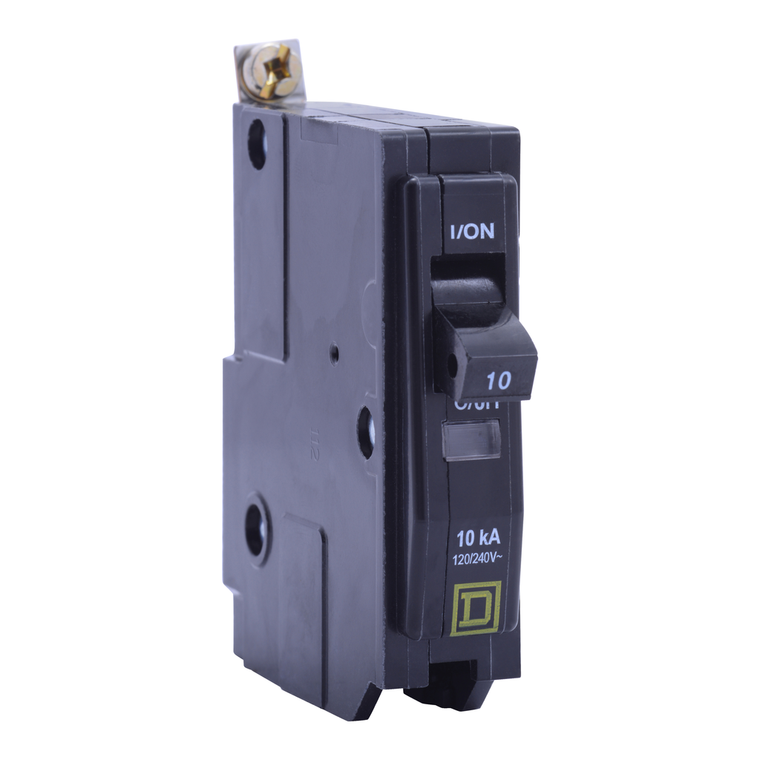

Schneider Electric QOB11035 Miniature Circuit Breaker 120/240V 10A
QO and QOB one, two, and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 1 pole QO circuit breaker is rated at 10A at 120/240VAC. This unit provides 10kA breaking capacity and is bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product is rated for operation at 50 degrees C. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
- Ambient Air Temperature For Operation:
- 50 °C
- Halogen Content Performance:
- Halogen free product
- Sustainable Offer Status:
- Green Premium product
- Depth:
- 74 mm
- Mounting Mode:
- bolt-on
- Product Or Component Type:
- miniature circuit-breaker
- Net Weight:
- 0.136 kg
- Rohs Exemption Information:
- Yes
- Toxic Heavy Metal Free:
- Yes
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Electrical Connection:
- pressure plate
- Warranty:
- 18 months
- Circuit Breaker Type:
- standard
- Mercury Free:
- Yes
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Range Of Product:
- QO
- Number Of Spaces Required:
- 1
- Tightening Torque:
- 4-4 N.m
- Poles Description:
- 1P
- [Ue] Rated Operational Voltage:
- 120/240 V AC || 120 V AC
- Circuit Breaker Application:
- HACR rated
- Width:
- 19 mm
- Eu Rohs Directive:
- Compliant with Exemptions
- Height:
- 76 mm
- Breaking Capacity:
- 10 kA 120/240 V AC 50/60 Hz || 10 kA 120 V AC 50/60 Hz
- Circularity Profile:
- N/A
- Line Rated Current:
- 0.416666666666667
- Awg Gauge:
- AWG 14...AWG 8 copper or aluminium
