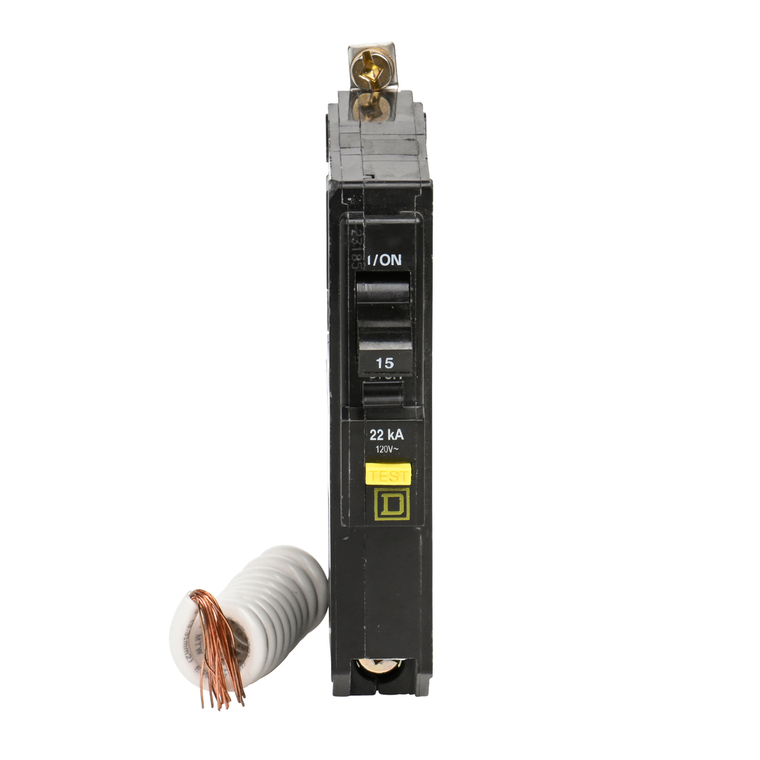

Schneider Electric QOB115VHGFI Miniature Circuit Breaker 120V 15A
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
QO and QOB one, two, and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 1 pole QO circuit breaker is rated at 15A at 120VAC. This unit provides 22kA breaking capacity and is bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product includes a 6mA ground fault A with pigtail. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
- Width:
- 19 mm
- Sustainable Offer Status:
- Green Premium product
- Rohs Exemption Information:
- Yes
- Line Rated Current:
- 15 A
- Mercury Free:
- Yes
- Depth:
- 74 mm
- Height:
- 105 mm
- Toxic Heavy Metal Free:
- Yes
- Number Of Spaces Required:
- 1
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Warranty:
- 18 months
- Poles Description:
- 1P
- Circularity Profile:
- N/A
- Product Certifications:
- UL Listed || CSA
- Breaking Capacity:
- 22 kA 120 V AC 50/60 Hz
- [Ue] Rated Operational Voltage:
- 120 V AC
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Product Or Component Type:
- miniature circuit-breaker
- Electrical Connection:
- pressure plate
- Circuit Breaker Application:
- not rated
- Tightening Torque:
- 4.6-4.6 N.m 2.5-10 mm² (AWG 16...AWG 14) || 4.6-4.6 N.m 4-20 mm² (AWG 12...AWG 4)
- Ambient Air Temperature For Operation:
- 40 °C
- Eu Rohs Directive:
- Compliant with Exemptions
- California Proposition 65:
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Halogen Content Performance:
- Halogen free product
- Net Weight:
- 0.240 kg
- Range Of Product:
- QO
- Circuit Breaker Type:
- ground fault protecting class A 6 mA
- Mounting Mode:
- bolt-on
- Awg Gauge:
- AWG 14...AWG 8 copper || AWG 12...AWG 8 aluminium
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
