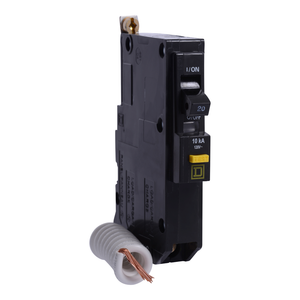

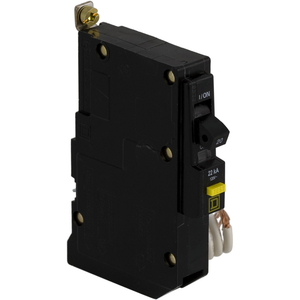

Schneider Electric QOB120VHEPD Miniature Circuit Breaker 120V 20A
Schneider Electric
$772.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
QO and QOB one, two, and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 1 pole QO circuit breaker is rated at 20A at 120VAC. This unit provides 22kA breaking capacity and is bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product includes a 30mA ground fault B protection. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
- California Proposition 65:
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Poles Description:
- 1P
- Number Of Spaces Required:
- 1
- Circuit Breaker Application:
- not rated
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Sustainable Offer Status:
- Green Premium product
- Depth:
- 74 mm
- Net Weight:
- 0.227 kg
- Circularity Profile:
- ENVEOLI2212005
- [Ue] Rated Operational Voltage:
- 120 V AC
- Product Or Component Type:
- miniature circuit-breaker
- Range Of Product:
- QO
- Electrical Connection:
- pressure plate
- Breaking Capacity:
- 22 kA 120 V AC 50/60 Hz
- Width:
- 19 mm
- Ambient Air Temperature For Operation:
- 40 °C
- Circuit Breaker Type:
- ground fault protecting class B 30 mA
- Environmental Disclosure:
- ENVPEP2212005
- Warranty:
- 18 months
- Tightening Torque:
- 4.6-4.6 N.m 2.5-10 mm² (AWG 16...AWG 14) || 4.6-4.6 N.m 4-20 mm² (AWG 12...AWG 4)
- Eu Rohs Directive:
- Compliant with Exemptions
- Line Rated Current:
- 20 A
- Mounting Mode:
- bolt-on
- Mercury Free:
- Yes
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information:
- Yes
- Height:
- 105 mm
- Product Certifications:
- UL Listed || CSA
- Awg Gauge:
- AWG 14...AWG 8 copper || AWG 12...AWG 8 aluminium
