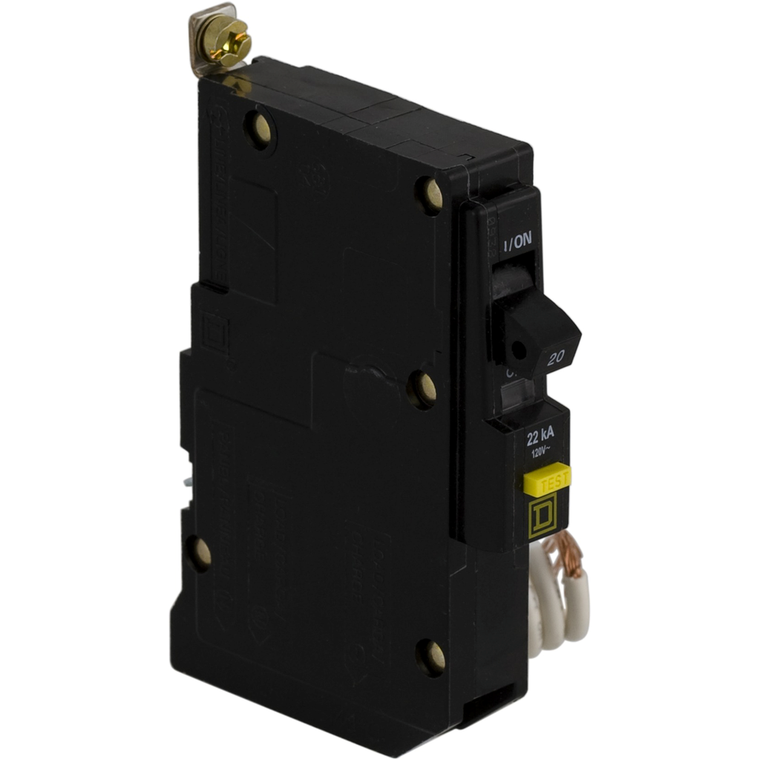

Schneider Electric QOB120VHGFIFT Miniature Circuit Breaker 120V 20A

(No reviews yet) Write a Review

Write a Review

Schneider Electric QOB120VHGFIFT Miniature Circuit Breaker 120V 20A

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

QOB120VHGFIFT

UPC:

3606486144381

MPN:

Condition:

New

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Product Or Component Type:

miniature circuit-breaker

Depth:

74 mm

Circuit Breaker Application:

not rated

Poles Description:

1P

Breaking Capacity:

22 kA 120 V AC 50/60 Hz

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Height:

105 mm

Range Of Product:

QO

Ambient Air Temperature For Operation:

40 °C

Mercury Free:

Yes

Product Certifications:

UL Listed || CSA

Warranty:

18 months

Mounting Mode:

bolt-on

Number Of Spaces Required:

1

Net Weight:

0.245 kg

Tightening Torque:

4.6-4.6 N.m 2.5-10 mm² (AWG 16...AWG 14) || 4.6-4.6 N.m 4-20 mm² (AWG 12...AWG 4)

Circuit Breaker Type:

ground fault protecting class A 6 mA

Line Rated Current:

20 A

Electrical Connection:

pressure plate

Awg Gauge:

AWG 14...AWG 8 copper || AWG 12...AWG 8 aluminium

California Proposition 65:

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Eu Rohs Directive:

Compliant with Exemptions

[Ue] Rated Operational Voltage:

120 V AC

Toxic Heavy Metal Free:

Yes

Rohs Exemption Information:

Yes
