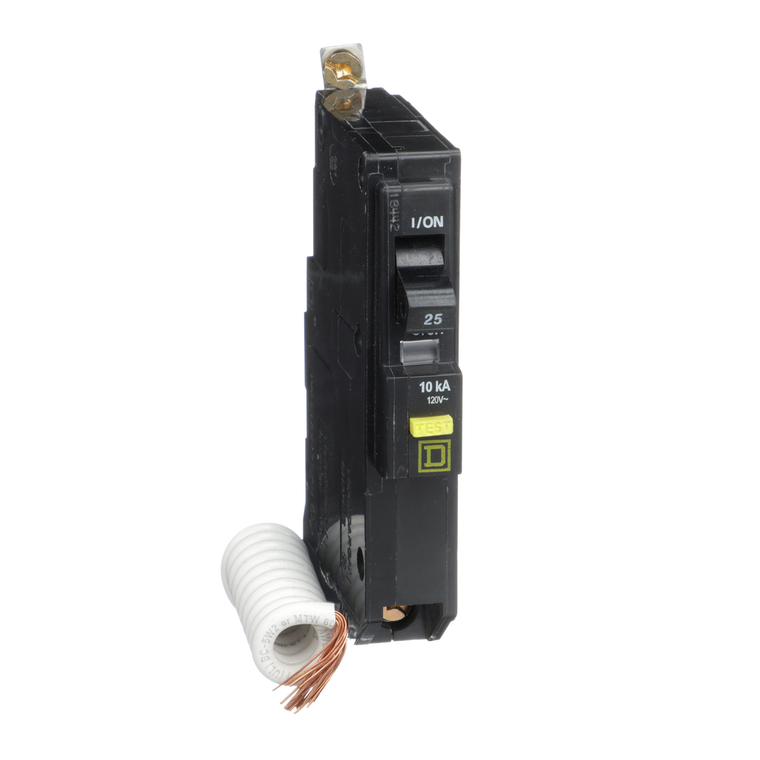

Schneider Electric QOB125GFI Miniature Circuit Breaker 120V 25A

(No reviews yet) Write a Review

Write a Review

Schneider Electric QOB125GFI Miniature Circuit Breaker 120V 25A

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

QOB125GFI

UPC:

7.85901E+11

MPN:

Condition:

New

Environmental Disclosure:

ENVPEP2212005

Line Rated Current:

25 A

Circuit Breaker Type:

ground fault protecting class A 6 mA

Breaking Capacity:

10 kA 120 V AC 50/60 Hz || 10 kA

Sustainable Offer Status:

Green Premium product

Product Or Component Type:

miniature circuit-breaker

Poles Description:

1P

Tightening Torque:

4-4 N.m || 4.6-4.6 N.m 4-20 mm² (AWG 12...AWG 4)

Awg Gauge:

AWG 14...AWG 8 copper || AWG 12...AWG 8 aluminium

Circuit Breaker Application:

not rated

Mounting Mode:

bolt-on

Product Certifications:

UL Listed || CSA

Number Of Spaces Required:

1

Rohs Exemption Information:

Yes

Mercury Free:

Yes

Net Weight:

0.254 kg

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

California Proposition 65:

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Depth:

74 mm

Electrical Connection:

pressure plate

[Ue] Rated Operational Voltage:

120 V AC

Height:

105 mm

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Range Of Product:

QO

Circularity Profile:

ENVEOLI2212005

Ambient Air Temperature For Operation:

40 °C

Warranty:

18 months

Eu Rohs Directive:

Compliant with Exemptions

Width:

19 mm
