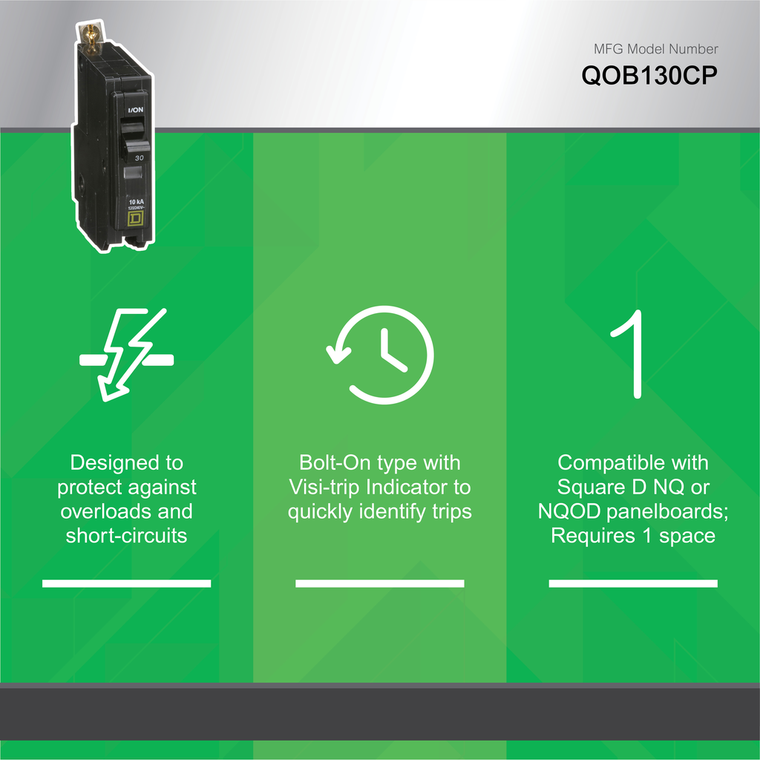

Schneider Electric QOB130FT Miniature Circuit Breaker 120/240V 30A
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
QO and QOB one, two, and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 1 pole QO circuit breaker is rated at 30A at 120/240VAC. This unit provides 10kA breaking capacity and is bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product includes a fungal treatment. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
- Toxic Heavy Metal Free:
- Yes
- Depth:
- 74 mm
- Range Of Product:
- QO
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information:
- Yes
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- [Ue] Rated Operational Voltage:
- 120/240 V AC || 120 V AC
- Ambient Air Temperature For Operation:
- 40 °C
- Mounting Mode:
- bolt-on
- Line Rated Current:
- 30 A
- Circuit Breaker Type:
- standard
- Poles Description:
- 1P
- Warranty:
- 18 months
- Product Certifications:
- UL Listed || CSA
- Awg Gauge:
- AWG 14...AWG 8 copper or aluminium
- Electrical Connection:
- pressure plate
- Circuit Breaker Application:
- HACR rated
- Number Of Spaces Required:
- 1
- Eu Rohs Directive:
- Compliant with Exemptions
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
- Tightening Torque:
- 4-4 N.m
- Breaking Capacity:
- 10 kA 120/240 V AC 50/60 Hz || 10 kA 120 V AC 50/60 Hz
- Height:
- 76 mm
- Product Or Component Type:
- miniature circuit-breaker
- Width:
- 19 mm
- Mercury Free:
- Yes
- Net Weight:
- 0.141 kg
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
