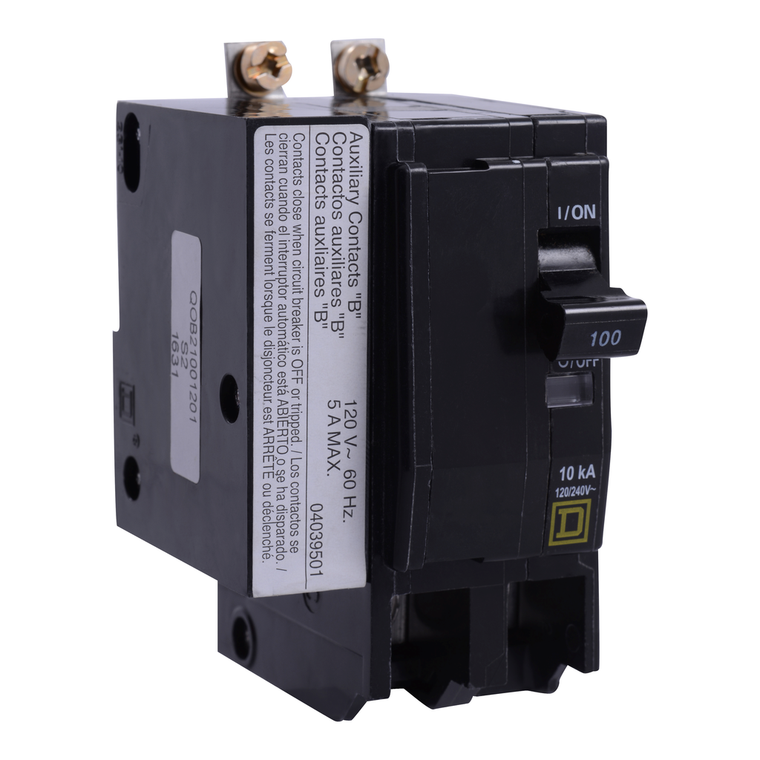

Schneider Electric QOB21001201 Miniature Circuit Breaker 120/240V 100A
Schneider Electric
$372.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric QOB21001201 Miniature Circuit Breaker 120/240V 100A
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
QO and QOB one, two, and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 2 pole QO circuit breaker is rated at 100A at 120/240VAC. This unit provides 10kA breaking capacity and is bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product includes an auxiliary switch 1B. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
- Depth:
- 74 mm
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Warranty:
- 18 months
- [Ue] Rated Operational Voltage:
- 120/240 V AC || 120 V AC
- Width:
- 57 mm
- Mounting Mode:
- bolt-on
- Circuit Breaker Application:
- HACR rated
- Product Certifications:
- UL Listed || CSA
- Circularity Profile:
- N/A
- Product Or Component Type:
- miniature circuit-breaker
- Eu Rohs Directive:
- Compliant with Exemptions
- Awg Gauge:
- AWG 4...AWG 2/0 copper or aluminium
- Accessory / Separate Part Type:
- auxiliary switch 120 V AC 1B
- Breaking Capacity:
- 10 kA 120/240 V AC 50/60 Hz || 10 kA 120 V AC 50/60 Hz
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Number Of Spaces Required:
- 3
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Cadmium and cadmium compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Range Of Product:
- QO
- Ambient Air Temperature For Operation:
- 40 °C
- Line Rated Current:
- 100 A
- Sustainable Offer Status:
- Green Premium product
- Circuit Breaker Type:
- standard
- Rohs Exemption Information:
- Yes
- Net Weight:
- 0.463 kg
- Height:
- 89 mm
- Mercury Free:
- Yes
- Tightening Torque:
- 5.6-5.6 N.m
- Poles Description:
- 2P
- Electrical Connection:
- box lugs
- Halogen Content Performance:
- Halogen free product
