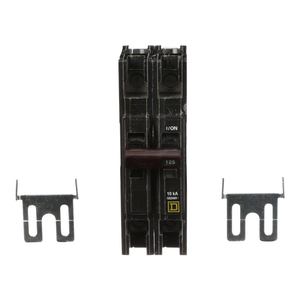

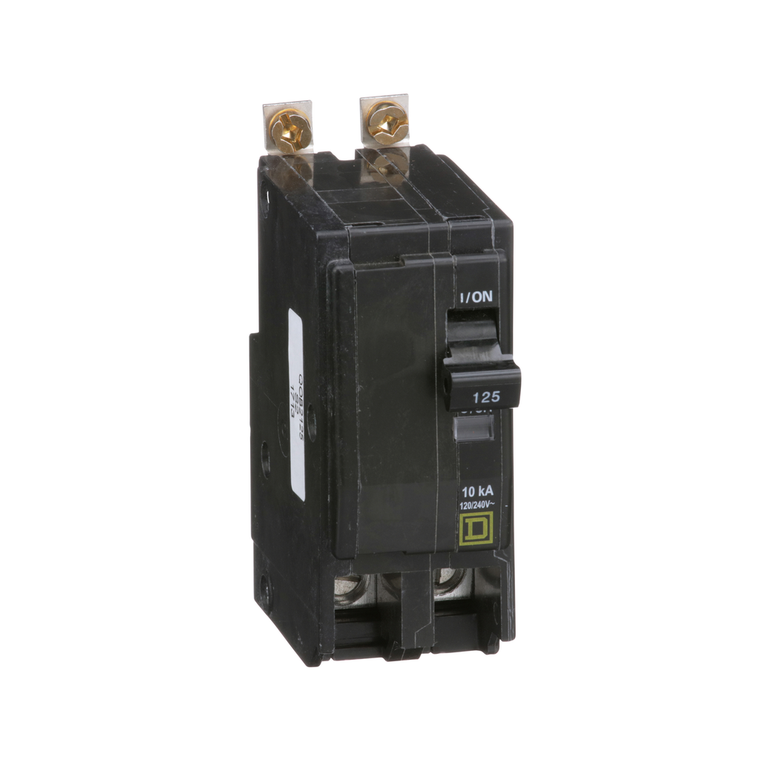

Schneider Electric QOB2125 Miniature Circuit Breaker 120/240V 125A
Schneider Electric
$541.08
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
QO and QOB one, two, and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 2 pole QO circuit breaker is rated at 125A at 120/240VAC. This unit provides 10kA breaking capacity and is bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
- Net Weight:
- 0.336 kg
- Number Of Spaces Required:
- 2
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Electrical Connection:
- box lugs
- Range Of Product:
- QO
- Mounting Mode:
- bolt-on
- Height:
- 89 mm
- Eu Rohs Directive:
- Compliant with Exemptions
- Warranty:
- 18 months
- Circularity Profile:
- N/A
- Line Rated Current:
- 125 A
- Depth:
- 74 mm
- Product Certifications:
- UL Listed || CSA
- Tightening Torque:
- 5.6-5.6 N.m
- Mercury Free:
- Yes
- Rohs Exemption Information:
- Yes
- Poles Description:
- 2P
- Breaking Capacity:
- 10 kA 120/240 V AC 50/60 Hz || 10 kA 120 V AC 50/60 Hz
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Halogen Content Performance:
- Halogen free product
- Width:
- 38 mm
- Product Or Component Type:
- miniature circuit-breaker
- Circuit Breaker Type:
- standard
- [Ue] Rated Operational Voltage:
- 120/240 V AC || 120 V AC
- Ambient Air Temperature For Operation:
- 40 °C
- Circuit Breaker Application:
- HACR rated
- Awg Gauge:
- AWG 4...AWG 2/0 copper or aluminium
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Cadmium and cadmium compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Sustainable Offer Status:
- Green Premium product
