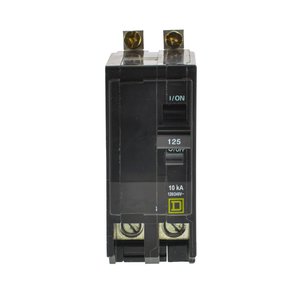

Schneider Electric QOB2125VHFT Miniature Circuit Breaker 240V 125A
Schneider Electric
$1,998.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric QOB2125VHFT Miniature Circuit Breaker 240V 125A
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 2 pole QO circuit breaker is rated at 125A at 240VAC. This unit provides 22kA breaking capacity and bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555. This product also includes a fungal treatment.
- Breaking Capacity:
- 22 kA 240 V AC 50/60 Hz
- Tightening Torque:
- 5.6-5.6 N.m
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Net Weight:
- 0.340 kg
- Warranty:
- 18 months
- Width:
- 40.64 mm
- Mounting Mode:
- bolt-on
- Line Rated Current:
- 125 A
- Poles Description:
- 2P
- Mercury Free:
- Yes
- Height:
- 88.9 mm
- Product Or Component Type:
- miniature circuit-breaker
- Product Certifications:
- UL Listed || CSA
- [Ue] Rated Operational Voltage:
- 120/240 V AC
- Circuit Breaker Type:
- standard
- Range Of Product:
- QO
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Cadmium and cadmium compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Rohs Exemption Information:
- Yes
- Circuit Breaker Application:
- HACR rated
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive:
- Compliant with Exemptions
- Depth:
- 111.76 mm
- Ambient Air Temperature For Operation:
- 40 °C
- Number Of Spaces Required:
- 2
- Datasheet:
- View
