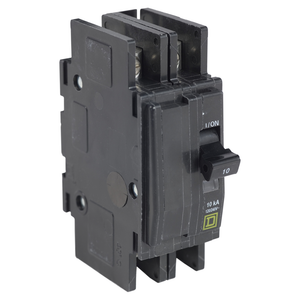

Schneider Electric QOB2155237 Miniature Circuit Breaker 120/240V 15A

Schneider Electric QOB2155237 Miniature Circuit Breaker 120/240V 15A

Schneider Electric
SKU:
QOB2155237
|
UPC:
785901088615
Availability:
Contact us to confirm availability and lead times.
$107.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
QO and QOB one, two, and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 2 pole QO circuit breaker is rated at 15A at 120/240VAC. This unit provides 10kA breaking capacity and is bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product includes ring terminals. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
Additional Information
Halogen Content Performance:
Halogen free product
Electrical Connection:
ring tongue
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Circuit Breaker Application:
HACR and Switching Duty rated
Toxic Heavy Metal Free:
Yes
Sustainable Offer Status:
Green Premium product
Height:
76 mm
Circularity Profile:
N/A
[Ue] Rated Operational Voltage:
120/240 V AC || 120 V AC
Rohs Exemption Information:
Yes
Net Weight:
0.277 kg
Tightening Torque:
4-4 N.m
Poles Description:
2P
Eu Rohs Directive:
Compliant with Exemptions
Warranty:
18 months
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Width:
38 mm
Breaking Capacity:
10 kA 120/240 V AC 50/60 Hz || 10 kA 120 V AC 50/60 Hz
Mercury Free:
Yes
Depth:
74 mm
Line Rated Current:
15 A
Mounting Mode:
bolt-on
Range Of Product:
QO
Circuit Breaker Type:
standard
Product Certifications:
UL Listed || CSA
Product Or Component Type:
miniature circuit-breaker
Number Of Spaces Required:
2
Awg Gauge:
AWG 14...AWG 8 copper
Ambient Air Temperature For Operation:
40 °C
