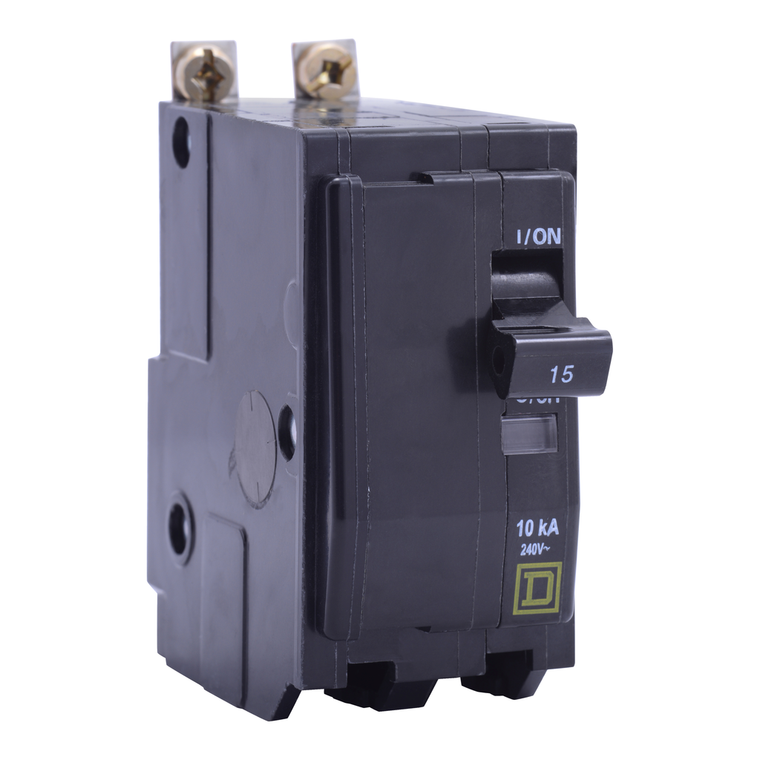

Schneider Electric QOB215HID Miniature Circuit Breaker 240V 15A
Schneider Electric
$108.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric QOB215HID Miniature Circuit Breaker 240V 15A
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
QO and QOB one, two, and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 2 pole QO circuit breaker is rated at 15A at 120/240VAC. This unit provides 10kA breaking capacity and is bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product has a high density discharge feature. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Mounting Mode:
- bolt-on
- Range Of Product:
- QO
- Poles Description:
- 2P
- Line Rated Current:
- 15 A
- Eu Rohs Directive:
- Compliant with Exemptions
- Product Certifications:
- UL Listed || CSA
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Awg Gauge:
- AWG 14...AWG 8 copper or aluminium
- Net Weight:
- 0.277 kg
- Tightening Torque:
- 4-4 N.m
- Ambient Air Temperature For Operation:
- 40 °C
- Mercury Free:
- Yes
- Height:
- 76 mm
- Circuit Breaker Application:
- not rated
- Circularity Profile:
- N/A
- Number Of Spaces Required:
- 2
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Cadmium and cadmium compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Halogen Content Performance:
- Halogen free product
- Rohs Exemption Information:
- Yes
- Product Or Component Type:
- miniature circuit-breaker
- Width:
- 38 mm
- Breaking Capacity:
- 10 kA 120/240 V AC 50/60 Hz
- Depth:
- 74 mm
- Sustainable Offer Status:
- Green Premium product
- Electrical Connection:
- pressure plate
- [Ue] Rated Operational Voltage:
- 120/240 V AC
- Circuit Breaker Type:
- high intensity discharge
- Warranty:
- 18 months
