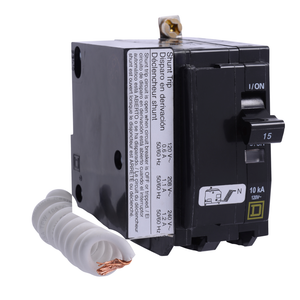

Schneider Electric QOB215SWN Miniature Circuit Breaker 120V 15A
Schneider Electric
$116.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric QOB215SWN Miniature Circuit Breaker 120V 15A
QO and QOB one, two, and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 2 pole QO circuit breaker is rated at 15A at 120VAC. This unit provides 10kA breaking capacity and is bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product includes a switch neutral. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Circuit Breaker Application:
- not rated
- Product Certifications:
- UL Listed || CSA
- Depth:
- 74 mm
- Line Rated Current:
- 15 A
- Circuit Breaker Type:
- switch neutral
- Range Of Product:
- QO
- Ambient Air Temperature For Operation:
- 40 °C
- Breaking Capacity:
- 10 kA 120 V AC 50/60 Hz
- Height:
- 76 mm
- Tightening Torque:
- 4-4 N.m
- Mounting Mode:
- bolt-on
- Width:
- 38 mm
- Toxic Heavy Metal Free:
- Yes
- Poles Description:
- 2P
- Eu Rohs Directive:
- Compliant with Exemptions
- Net Weight:
- 0.268 kg
- Rohs Exemption Information:
- Yes
- Warranty:
- 18 months
- Halogen Content Performance:
- Halogen free product
- Product Or Component Type:
- miniature circuit-breaker
- Number Of Spaces Required:
- 2
- Mercury Free:
- Yes
- Circularity Profile:
- N/A
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Electrical Connection:
- pressure plate
- [Ue] Rated Operational Voltage:
- 120 V AC
- Sustainable Offer Status:
- Green Premium product
- Awg Gauge:
- AWG 14...AWG 8 copper or aluminium
