Schneider Electric

Schneider Electric QOB2205252 Miniature Circuit Breaker 120/240V 20A

(No reviews yet) Write a Review
SKU:
QOB2205252
UPC:
785901400608
Condition:
New
Number Of Spaces Required:
3
Rohs Exemption Information:
Yes
Net Weight:
0.268 kg
Circuit Breaker Type:
standard
Product Certifications:
UL Listed || CSA
Circuit Breaker Application:
HACR rated
Line Rated Current:
20 A
Depth:
74 mm
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
[Ue] Rated Operational Voltage:
120/240 V AC || 120 V AC
Ambient Air Temperature For Operation:
40 °C
Poles Description:
2P
Range Of Product:
QO
Product Or Component Type:
miniature circuit-breaker
Mounting Mode:
bolt-on
Awg Gauge:
AWG 14...AWG 8 copper
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Accessory / Separate Part Type:
shunt trip 120/208/240 V AC
Width:
38 mm
Breaking Capacity:
10 kA 120/240 V AC 50/60 Hz || 10 kA 120 V AC 50/60 Hz
Electrical Connection:
ring tongue
Mercury Free:
Yes
Tightening Torque:
4-4 N.m
Circularity Profile:
N/A
Sustainable Offer Status:
Green Premium product
Height:
76 mm
Eu Rohs Directive:
Compliant with Exemptions
Toxic Heavy Metal Free:
Yes
Warranty:
18 months
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Brochure:
View
Datasheet:
View
$296.00

Description

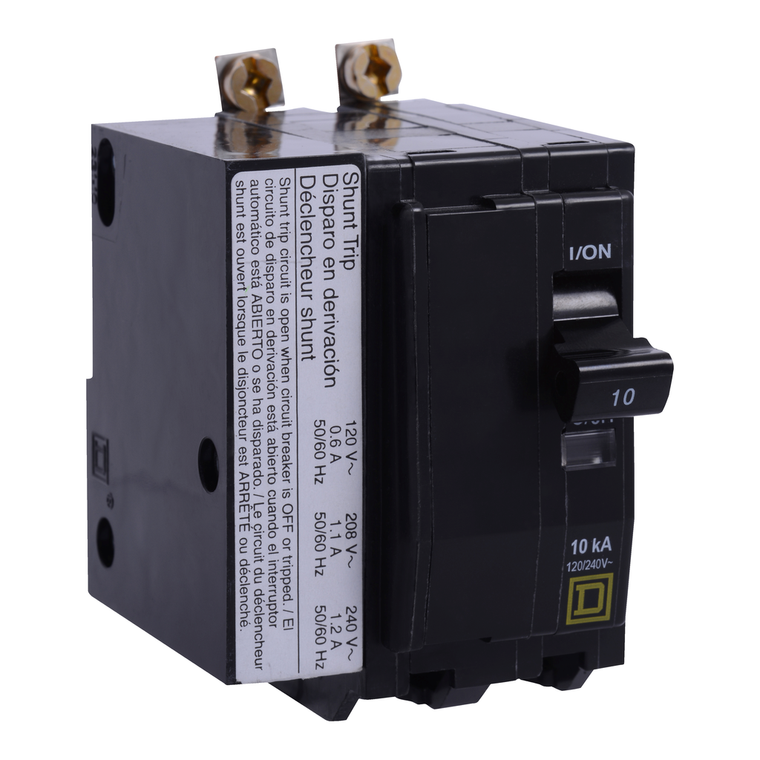

QO and QOB one, two, and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 2 pole QO circuit breaker is rated at 20A at 120/240VAC. This unit provides 10kA breaking capacity and is bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product includes an AC shunt trip and ring terminals. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
