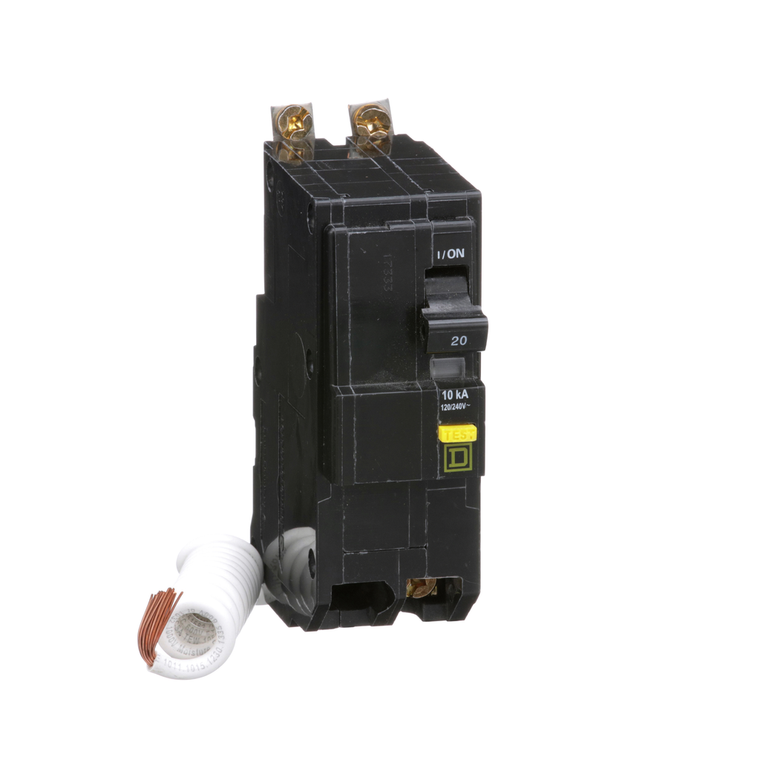

Schneider Electric QOB220GFI Miniature Circuit Breaker 120/240V 20A
Schneider Electric
$444.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric QOB220GFI Miniature Circuit Breaker 120/240V 20A
QO and QOB one, two, and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 2 pole QO circuit breaker is rated at 20A at 120/240VAC. This unit provides 10kA breaking capacity and is bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product includes a 6mA ground fault A with pigtail. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
- Poles Description:
- 2P
- Breaking Capacity:
- 10 kA 120/240 V AC 50/60 Hz || 10 kA 120 V AC 50/60 Hz
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Mercury Free:
- Yes
- Rohs Exemption Information:
- Yes
- Height:
- 105 mm
- Number Of Spaces Required:
- 2
- Electrical Connection:
- pressure plate
- Circularity Profile:
- ENVEOLI2212005
- Circuit Breaker Application:
- not rated
- Environmental Disclosure:
- ENVPEP2212005
- Net Weight:
- 0.435 kg
- Circuit Breaker Type:
- ground fault protecting class A 6 mA
- Sustainable Offer Status:
- Green Premium product
- Tightening Torque:
- 4-4 N.m || 4.6-4.6 N.m 4-20 mm² (AWG 12...AWG 4)
- Product Or Component Type:
- miniature circuit-breaker
- Product Certifications:
- UL Listed || CSA
- Warranty:
- 18 months
- Ambient Air Temperature For Operation:
- 40 °C
- Eu Rohs Directive:
- Compliant with Exemptions
- Depth:
- 74 mm
- Awg Gauge:
- AWG 14...AWG 8 copper || AWG 12...AWG 8 aluminium
- Line Rated Current:
- 20 A
- Mounting Mode:
- bolt-on
- Range Of Product:
- QO
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- [Ue] Rated Operational Voltage:
- 120/240 V AC || 120 V AC
- California Proposition 65:
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Width:
- 38 mm
