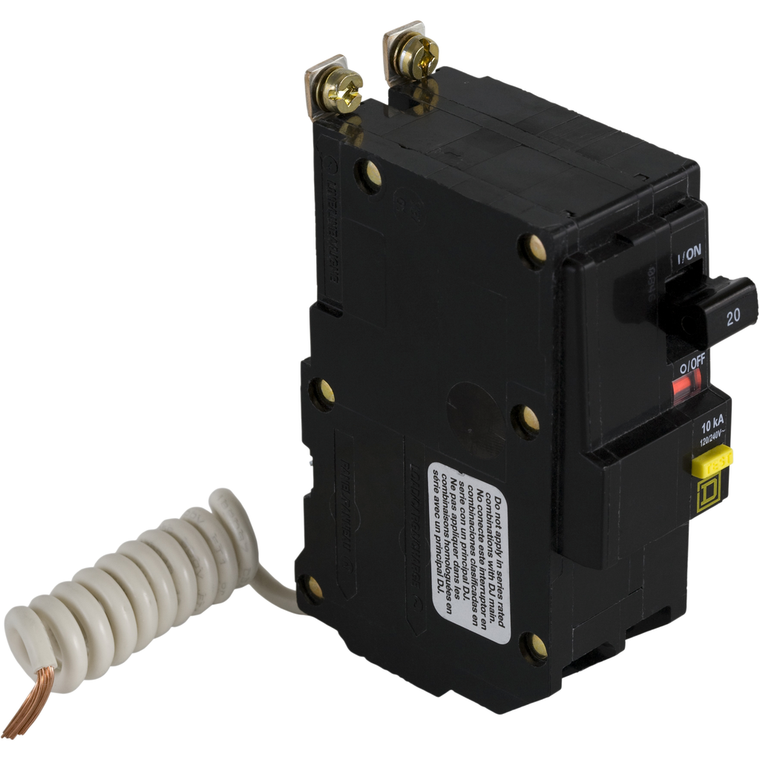

Schneider Electric QOB220GFIFT Miniature Circuit Breaker 120/240V 20A

Schneider Electric QOB220GFIFT Miniature Circuit Breaker 120/240V 20A

Schneider Electric
SKU:
QOB220GFIFT
|
UPC:
3606486144671
Availability:
Contact us to confirm availability and lead times.
$533.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
QO and QOB one, two, and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 2 pole QO circuit breaker is rated at 20A at 120/240VAC. This unit provides 10kA breaking capacity and is bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product includes a 6mA ground fault A with pigtail, and a fungal treatment. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
Additional Information
Circuit Breaker Application:
not rated
[Ue] Rated Operational Voltage:
120/240 V AC || 120 V AC
Mercury Free:
Yes
Product Certifications:
UL Listed || CSA
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Mounting Mode:
bolt-on
Range Of Product:
QO
Net Weight:
0.195 kg
Depth:
74 mm
Electrical Connection:
pressure plate
Circuit Breaker Type:
ground fault protecting class A 6 mA
Line Rated Current:
20 A
Awg Gauge:
AWG 14...AWG 8 copper || AWG 12...AWG 8 aluminium
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Width:
38 mm
Height:
105 mm
Product Or Component Type:
miniature circuit-breaker
Breaking Capacity:
10 kA 120/240 V AC 50/60 Hz || 10 kA 120 V AC 50/60 Hz
Eu Rohs Directive:
Compliant with Exemptions
Tightening Torque:
4-4 N.m || 4.6-4.6 N.m 4-20 mm² (AWG 12...AWG 4)
Poles Description:
2P
Rohs Exemption Information:
Yes
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Number Of Spaces Required:
2
Ambient Air Temperature For Operation:
40 °C
