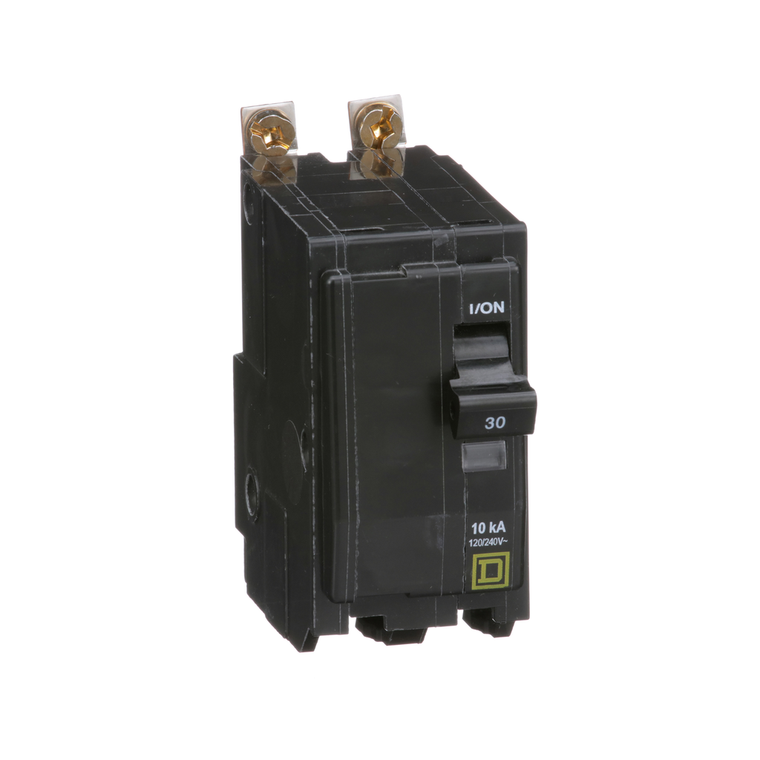

Schneider Electric QOB230FT Miniature Circuit Breaker 120/240V 30A

(No reviews yet) Write a Review
SKU:
QOB230FT
UPC:
3606486144787
Condition:
New
Circuit Breaker Type:
standard
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Awg Gauge:
AWG 14...AWG 8 copper or aluminium
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Breaking Capacity:
10 kA 120/240 V AC 50/60 Hz || 10 kA 120 V AC 50/60 Hz
Width:
38 mm
Line Rated Current:
30 A
Mounting Mode:
bolt-on
Warranty:
18 months
[Ue] Rated Operational Voltage:
120/240 V AC || 120 V AC
Mercury Free:
Yes
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Product Certifications:
UL Listed || CSA
Product Or Component Type:
miniature circuit-breaker
Eu Rohs Directive:
Compliant with Exemptions
Rohs Exemption Information:
Yes
Net Weight:
0.277 kg
Height:
76 mm
Range Of Product:
QO
Tightening Torque:
4-4 N.m
Toxic Heavy Metal Free:
Yes
Number Of Spaces Required:
2
Ambient Air Temperature For Operation:
40 °C
Electrical Connection:
pressure plate
Depth:
74 mm
Poles Description:
2P
Circuit Breaker Application:
HACR rated
Brochure:
View
Catalog:
View
Datasheet:
View
$107.00

Description

QO and QOB one, two, and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 2 pole QO circuit breaker is rated at 30A at 120/240VAC. This unit provides 10kA breaking capacity and is bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product includes a fungal treatment. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
