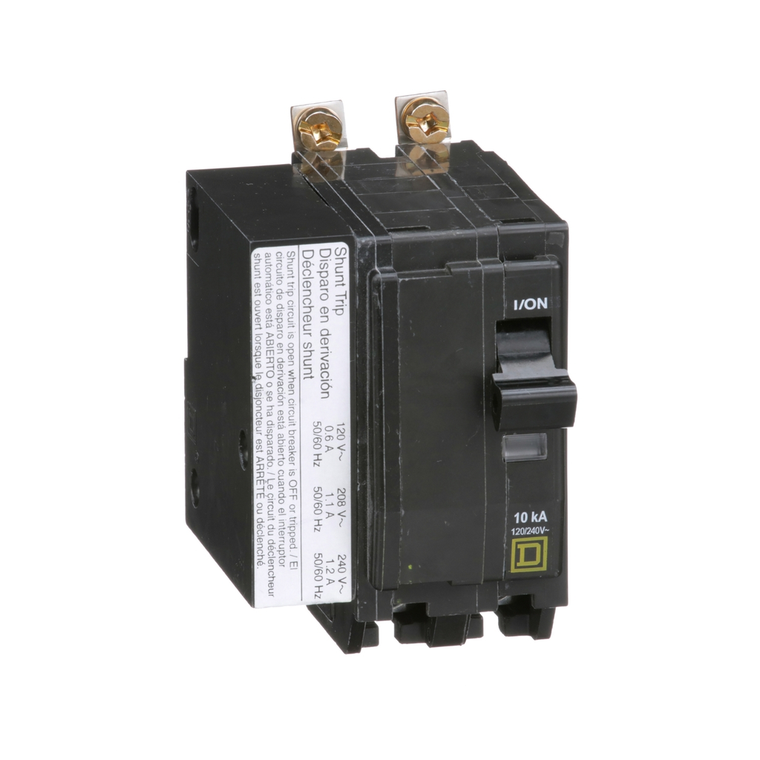

Schneider Electric QOB230H1021 Miniature Circuit Breaker 240V 30A

Schneider Electric
SKU:
QOB230H1021
|
UPC:
3606486144817
Availability:
Contact us to confirm availability and lead times.
$643.50
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 2 pole QO circuit breaker is rated at 30A at 240VAC. This unit provides 10kA breaking capacity and bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product includes an AC shunt trip. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555
Additional Information
Ambient Air Temperature For Operation:
40 °C
Product Or Component Type:
miniature circuit-breaker
Accessory / Separate Part Type:
shunt trip 120/208/240 V AC
Circuit Breaker Application:
HACR rated
Line Rated Current:
30 A
Number Of Spaces Required:
2
Tightening Torque:
4.6-4.6 N.m
Product Certifications:
UL Listed || CSA
Awg Gauge:
AWG 14...AWG 8 copper or aluminium
Breaking Capacity:
10 kA 120/240 V AC 50/60 Hz || 10 kA 240 V AC 50/60 Hz || 10 kA 120 V AC 50/60 Hz
Eu Rohs Directive:
Compliant with Exemptions
Mercury Free:
Yes
Height:
76 mm
Net Weight:
0.422 kg
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Poles Description:
2P
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Range Of Product:
QO
Circuit Breaker Type:
standard
Depth:
74 mm
Rohs Exemption Information:
Yes
Warranty:
18 months
Width:
38 mm
Mounting Mode:
bolt-on
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Toxic Heavy Metal Free:
Yes
[Ue] Rated Operational Voltage:
120/240 V AC || 240 V AC || 120 V AC
Electrical Connection:
pressure plate
