Schneider Electric QOB230VH35 Miniature Circuit Breaker 240V 30A
Schneider Electric
$206.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

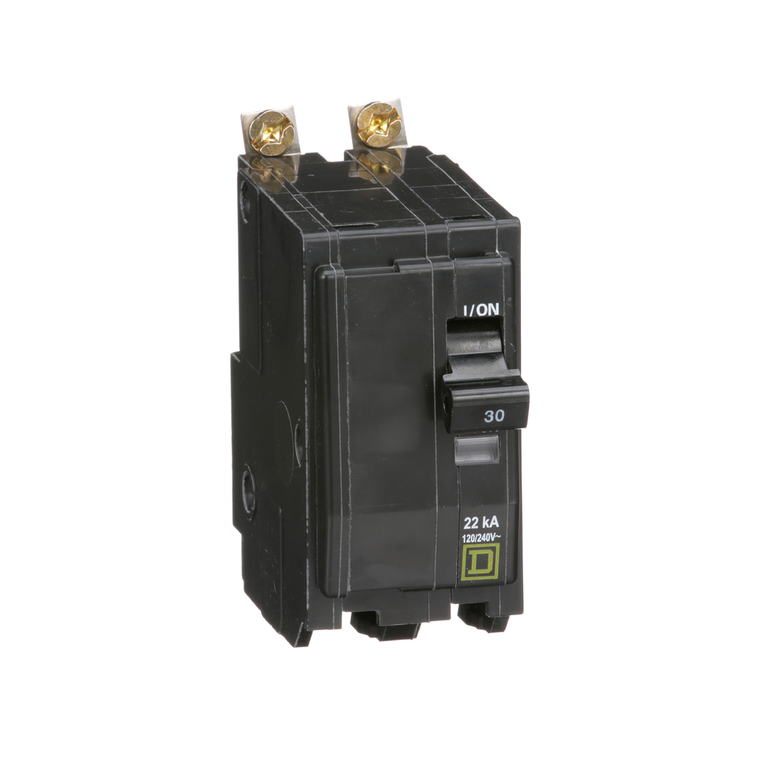

Schneider Electric QOB230VH35 Miniature Circuit Breaker 240V 30A
QO and QOB one, two, and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 2 pole QO circuit breaker is rated at 30A at 120/240VAC. This unit provides 22kA breaking capacity and is bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product is rated for operation at 50 degrees C. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
- Height:
- 76 mm
- Poles Description:
- 2P
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Circuit Breaker Type:
- standard
- Warranty:
- 18 months
- Toxic Heavy Metal Free:
- Yes
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Range Of Product:
- QO
- Ambient Air Temperature For Operation:
- 50 °C
- Width:
- 38 mm
- Product Certifications:
- UL Listed || CSA
- Tightening Torque:
- 4.6-4.6 N.m
- Line Rated Current:
- 30 A
- Circuit Breaker Application:
- HACR rated
- Electrical Connection:
- pressure plate
- Depth:
- 74 mm
- Number Of Spaces Required:
- 2
- Awg Gauge:
- AWG 14...AWG 8 copper or aluminium
- Mercury Free:
- Yes
- Breaking Capacity:
- 22 kA 120/240 V AC 50/60 Hz || 22 kA 240 V AC 50/60 Hz || 22 kA 120 V AC 50/60 Hz
- Product Or Component Type:
- miniature circuit-breaker
- Eu Rohs Directive:
- Compliant with Exemptions
- Net Weight:
- 0.268 kg
- [Ue] Rated Operational Voltage:
- 120/240 V AC || 240 V AC || 120 V AC
- Mounting Mode:
- bolt-on
- Rohs Exemption Information:
- Yes
- Brochure:
- View
- Datasheet:
- View
