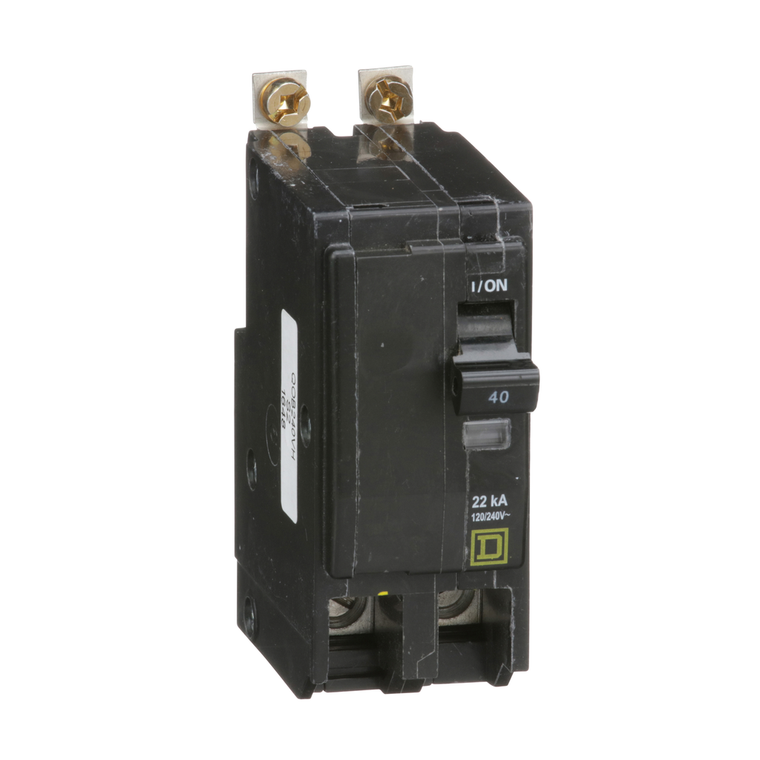

Schneider Electric QOB240VH Miniature Circuit Breaker 240V 40A
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
QO and QOB one, two, and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 2 pole QO circuit breaker is rated at 40A at 240VAC. This unit provides 22kA breaking capacity and is bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
- Width:
- 38 mm
- Breaking Capacity:
- 22 kA 120/240 V AC 50/60 Hz || 22 kA 240 V AC 50/60 Hz || 22 kA 120 V AC 50/60 Hz
- Height:
- 79 mm
- Circuit Breaker Application:
- HACR rated
- Halogen Content Performance:
- Halogen free product
- Awg Gauge:
- AWG 8...AWG 2 copper or aluminium
- Mounting Mode:
- bolt-on
- Tightening Torque:
- 5.6-5.6 N.m
- Circularity Profile:
- N/A
- Net Weight:
- 0.336 kg
- [Ue] Rated Operational Voltage:
- 120/240 V AC || 240 V AC || 120 V AC
- Depth:
- 74 mm
- Range Of Product:
- QO
- Product Certifications:
- UL Listed || CSA
- Ambient Air Temperature For Operation:
- 40 °C
- Product Or Component Type:
- miniature circuit-breaker
- Circuit Breaker Type:
- standard
- Poles Description:
- 2P
- Sustainable Offer Status:
- Green Premium product
- Mercury Free:
- Yes
- Line Rated Current:
- 40 A
- Electrical Connection:
- box lugs
- Eu Rohs Directive:
- Compliant with Exemptions
- Rohs Exemption Information:
- Yes
- Number Of Spaces Required:
- 2
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Cadmium and cadmium compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Warranty:
- 18 months
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
