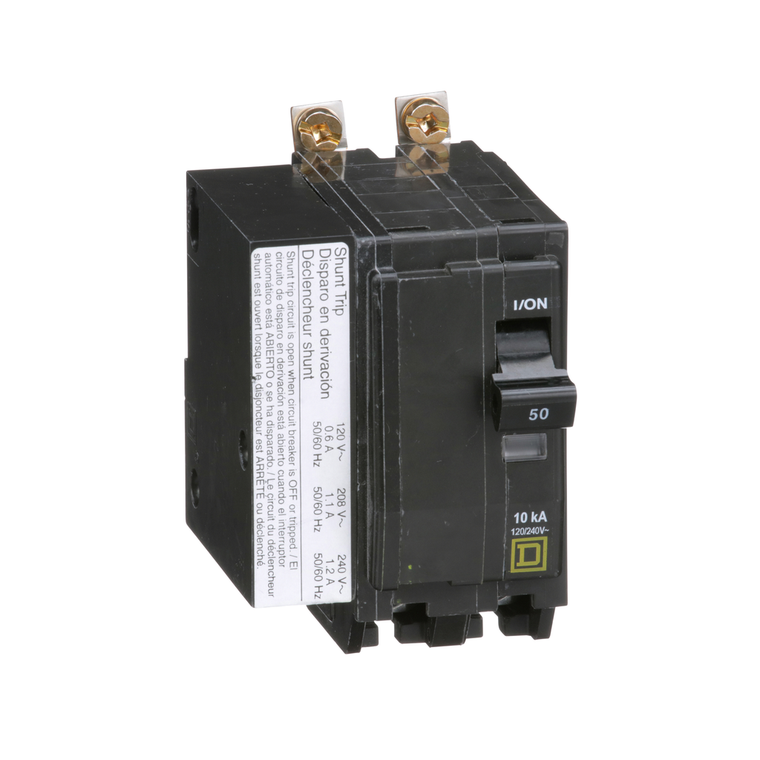

Schneider Electric QOB2501021 Miniature Circuit Breaker 120/240V 50A
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
QO and QOB one, two, and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 2 pole QO circuit breaker is rated at 50A at 120/240VAC. This unit provides 10kA breaking capacity and is bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product includes an AC shunt trip. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
- Mounting Mode:
- bolt-on
- Circuit Breaker Application:
- HACR rated
- Eu Rohs Directive:
- Compliant with Exemptions
- Toxic Heavy Metal Free:
- Yes
- Sustainable Offer Status:
- Green Premium product
- Product Certifications:
- UL Listed || CSA
- Mercury Free:
- Yes
- Breaking Capacity:
- 10 kA 120/240 V AC 50/60 Hz || 10 kA 120 V AC 50/60 Hz
- Number Of Spaces Required:
- 3
- Accessory / Separate Part Type:
- shunt trip 120/208/240 V AC
- Range Of Product:
- QO
- Ambient Air Temperature For Operation:
- 40 °C
- Tightening Torque:
- 5-5 N.m
- Depth:
- 74 mm
- Awg Gauge:
- AWG 8...AWG 2 copper or aluminium
- Line Rated Current:
- 50 A
- Width:
- 57 mm
- Height:
- 79 mm
- Product Or Component Type:
- miniature circuit-breaker
- Halogen Content Performance:
- Halogen free product
- Circularity Profile:
- N/A
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- [Ue] Rated Operational Voltage:
- 120/240 V AC || 120 V AC
- Electrical Connection:
- box lugs
- Poles Description:
- 2P
- Rohs Exemption Information:
- Yes
- Circuit Breaker Type:
- standard
- Net Weight:
- 0.431 kg
- Warranty:
- 18 months
