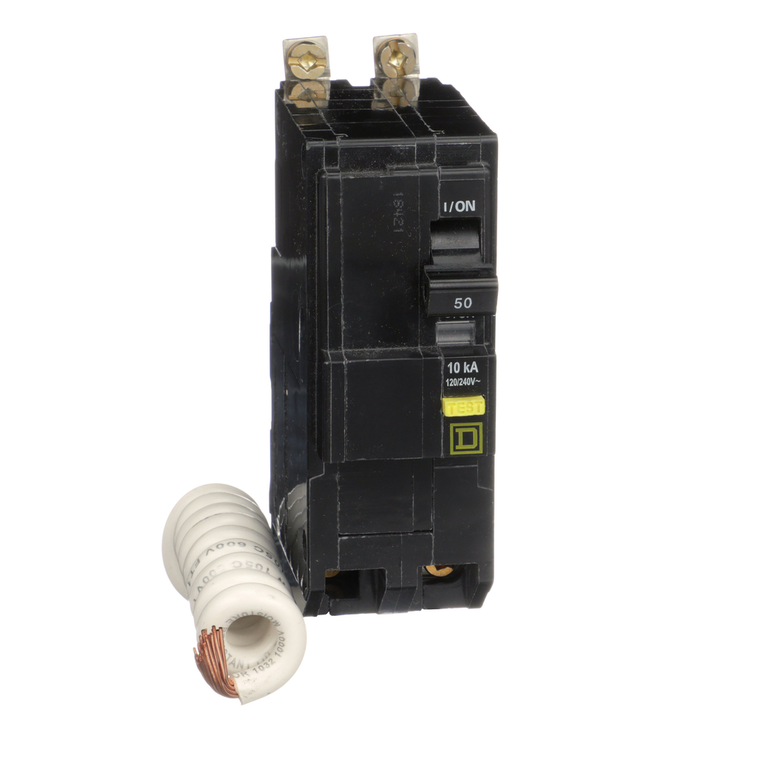

Schneider Electric QOB250GFI Miniature Circuit Breaker 120/240V 50A
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
QO and QOB one, two, and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 2 pole QO circuit breaker is rated at 50A at 120/240VAC. This unit provides 10kA breaking capacity and is bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product includes a 6mA ground fault A with pigtail. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
- Awg Gauge:
- AWG 12...AWG 4 aluminium || AWG 14...AWG 6 copper
- Ambient Air Temperature For Operation:
- 40 °C
- Rohs Exemption Information:
- Yes
- Mercury Free:
- Yes
- Number Of Spaces Required:
- 2
- Environmental Disclosure:
- ENVPEP2212005
- Product Certifications:
- UL Listed || CSA
- Mounting Mode:
- bolt-on
- Line Rated Current:
- 50 A
- Poles Description:
- 2P
- Width:
- 38 mm
- Depth:
- 74 mm
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Product Or Component Type:
- miniature circuit-breaker
- Eu Rohs Directive:
- Compliant with Exemptions
- [Ue] Rated Operational Voltage:
- 120/240 V AC || 120 V AC
- Sustainable Offer Status:
- Green Premium product
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile:
- ENVEOLI2212005
- Tightening Torque:
- 5-5 N.m || 4.6-4.6 N.m 4-20 mm² (AWG 12...AWG 4)
- Height:
- 105 mm
- Breaking Capacity:
- 10 kA 120/240 V AC 50/60 Hz || 10 kA 120 V AC 50/60 Hz
- Net Weight:
- 0.472 kg
- Circuit Breaker Type:
- ground fault protecting class A 6 mA
- Electrical Connection:
- box lugs
- California Proposition 65:
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Warranty:
- 18 months
- Circuit Breaker Application:
- not rated
- Range Of Product:
- QO
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
