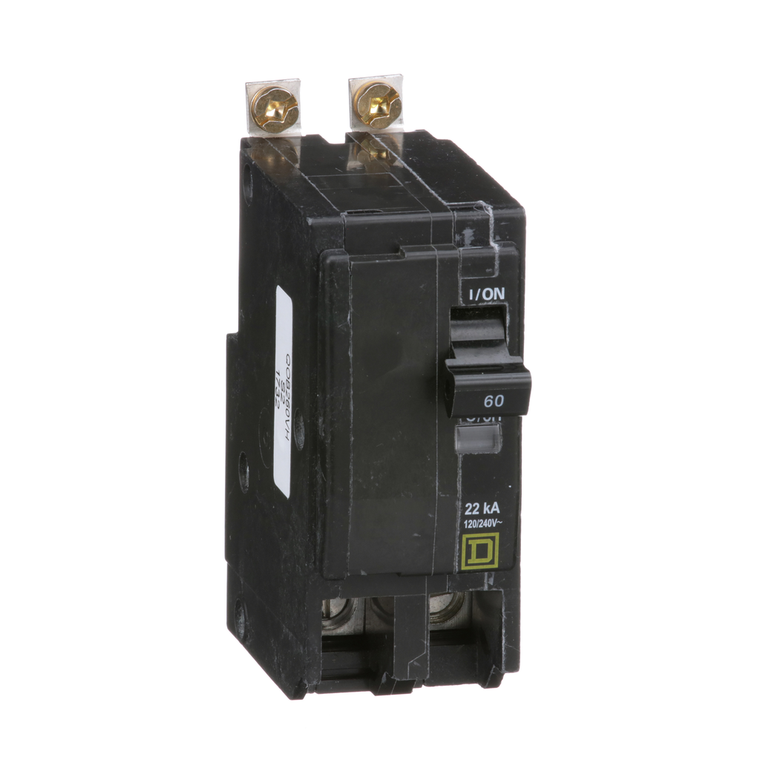

Schneider Electric QOB260VH35 Miniature Circuit Breaker 240V 60A
Schneider Electric
$205.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric QOB260VH35 Miniature Circuit Breaker 240V 60A
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 2 pole QO circuit breaker is rated at 60A at 120/240VAC. This unit provides 22kA breaking capacity and bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product is rated for operation at 50 degrees C. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555
- Poles Description:
- 2P
- Breaking Capacity:
- 22 kA 120/240 V AC 50/60 Hz || 22 kA 240 V AC 50/60 Hz || 22 kA 120 V AC 50/60 Hz
- Number Of Spaces Required:
- 2
- Depth:
- 74 mm
- Tightening Torque:
- 5.6-5.6 N.m
- [Ue] Rated Operational Voltage:
- 120/240 V AC || 240 V AC || 120 V AC
- Range Of Product:
- QO
- Ambient Air Temperature For Operation:
- 50 °C
- Product Or Component Type:
- miniature circuit-breaker
- Circuit Breaker Type:
- standard
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Electrical Connection:
- box lugs
- Line Rated Current:
- 60 A
- Width:
- 38 mm
- Mounting Mode:
- bolt-on
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Cadmium and cadmium compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Awg Gauge:
- AWG 8...AWG 2 copper or aluminium
- Product Certifications:
- UL Listed || CSA
- Mercury Free:
- Yes
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information:
- Yes
- Warranty:
- 18 months
- Eu Rohs Directive:
- Compliant with Exemptions
- Net Weight:
- 0.340 kg
- Height:
- 79 mm
- Circuit Breaker Application:
- HACR rated
- Datasheet:
- View
