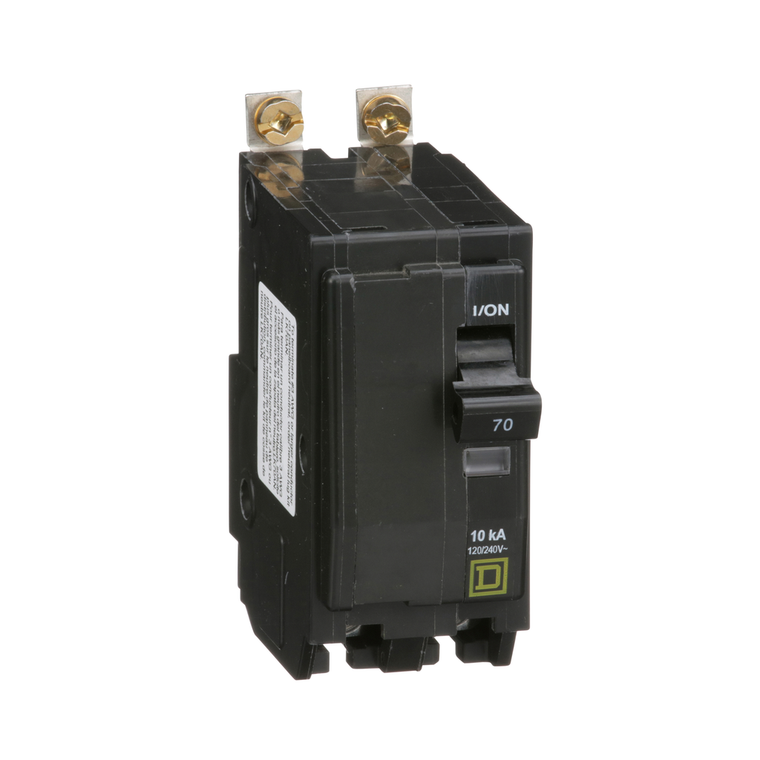

Schneider Electric QOB270 Miniature Circuit Breaker 120/240V 70A
Schneider Electric
$181.44
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
QO and QOB one, two, and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 2 pole QO circuit breaker is rated at 70A at 120/240VAC. This unit provides 10kA breaking capacity and is bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
- Width:
- 38 mm
- Product Certifications:
- UL Listed || CSA
- Number Of Spaces Required:
- 2
- Height:
- 79 mm
- Halogen Content Performance:
- Halogen free product
- Circularity Profile:
- N/A
- Mounting Mode:
- bolt-on
- Depth:
- 74 mm
- Line Rated Current:
- 70 A
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive:
- Compliant with Exemptions
- Range Of Product:
- QO
- Breaking Capacity:
- 10 kA 120/240 V AC 50/60 Hz || 10 kA 120 V AC 50/60 Hz
- Tightening Torque:
- 5-5 N.m
- Toxic Heavy Metal Free:
- Yes
- Sustainable Offer Status:
- Green Premium product
- Net Weight:
- 0.277 kg
- Mercury Free:
- Yes
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Product Or Component Type:
- miniature circuit-breaker
- Awg Gauge:
- AWG 8...AWG 2 copper or aluminium
- Circuit Breaker Application:
- HACR rated
- Ambient Air Temperature For Operation:
- 40 °C
- Poles Description:
- 2P
- Circuit Breaker Type:
- standard
- Rohs Exemption Information:
- Yes
- Warranty:
- 18 months
- [Ue] Rated Operational Voltage:
- 120/240 V AC || 120 V AC
- Electrical Connection:
- box lugs
