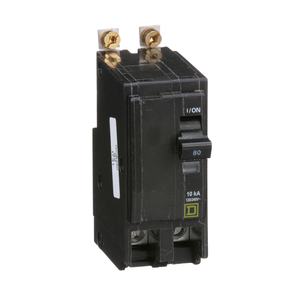

Schneider Electric QOB2801021 Miniature Circuit Breaker 120/240V 80A
Schneider Electric
$429.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric QOB2801021 Miniature Circuit Breaker 120/240V 80A

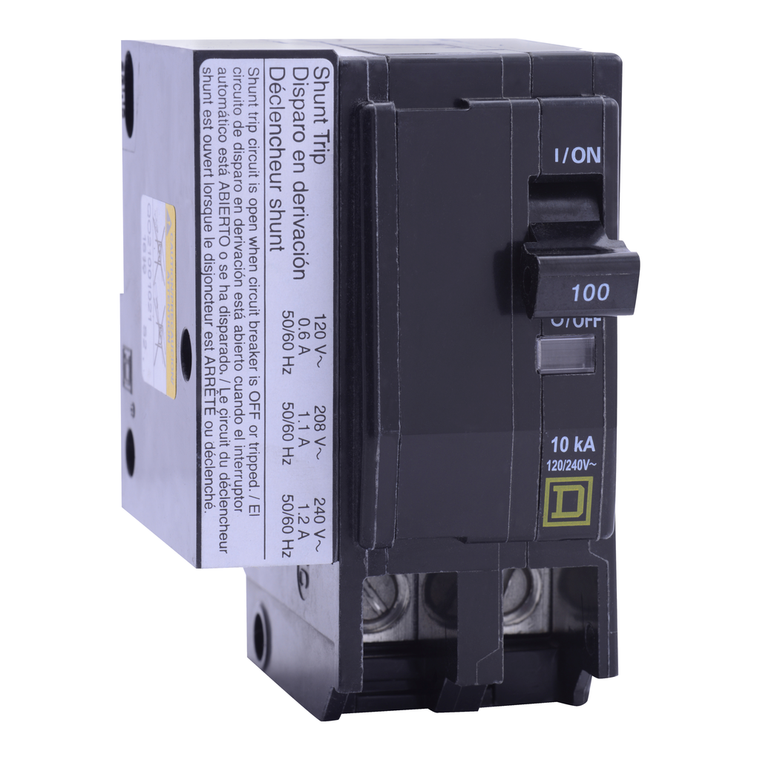

QO and QOB one, two, and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 2 pole QO circuit breaker is rated at 80A at 120/240VAC. This unit provides 10kA breaking capacity and is bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product includes an AC shunt trip. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
- Sustainable Offer Status:
- Green Premium product
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive:
- Compliant with Exemptions
- Width:
- 57 mm
- Awg Gauge:
- AWG 4...AWG 2/0 copper or aluminium
- Range Of Product:
- QO
- Product Certifications:
- UL Listed || CSA
- Poles Description:
- 2P
- Depth:
- 74 mm
- Circuit Breaker Application:
- HACR rated
- Rohs Exemption Information:
- Yes
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Warranty:
- 18 months
- Ambient Air Temperature For Operation:
- 40 °C
- Electrical Connection:
- box lugs
- [Ue] Rated Operational Voltage:
- 120/240 V AC || 120 V AC
- Product Or Component Type:
- miniature circuit-breaker
- Mounting Mode:
- bolt-on
- Tightening Torque:
- 5.6-5.6 N.m
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Breaking Capacity:
- 10 kA 120/240 V AC 50/60 Hz || 10 kA 120 V AC 50/60 Hz
- Halogen Content Performance:
- Halogen free product
- Circularity Profile:
- N/A
- Number Of Spaces Required:
- 3
- Accessory / Separate Part Type:
- shunt trip 120/208/240 V AC
- Line Rated Current:
- 80 A
- Mercury Free:
- Yes
- Net Weight:
- 0.463 kg
- Height:
- 89 mm
- Circuit Breaker Type:
- standard
