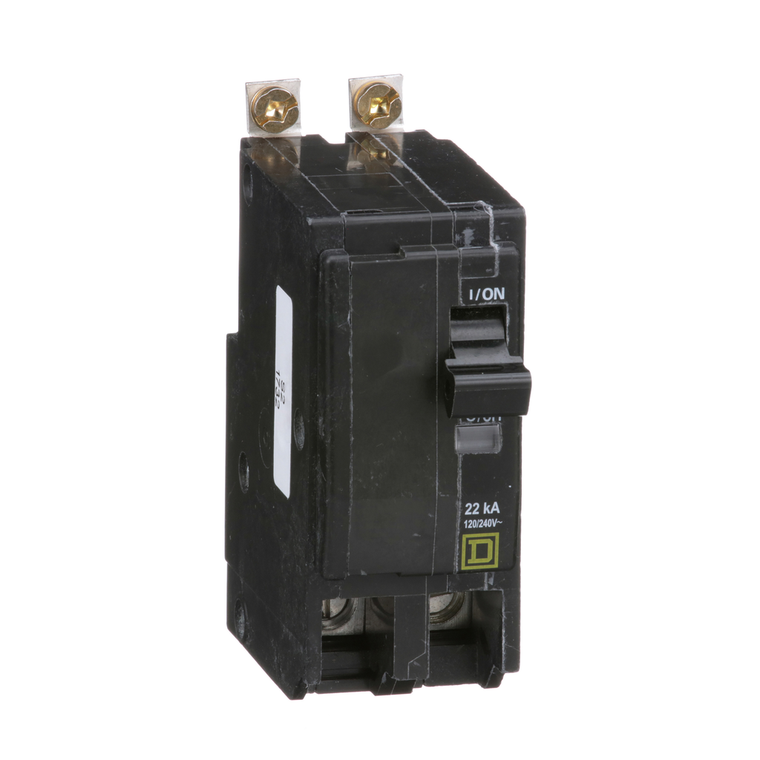

Schneider Electric QOB280VH Miniature Circuit Breaker 240V 80A

(No reviews yet) Write a Review

Write a Review

Schneider Electric QOB280VH Miniature Circuit Breaker 240V 80A

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

QOB280VH

UPC:

7.85901E+11

MPN:

Condition:

New

Poles Description:

2P

California Proposition 65:

WARNING: This product can expose you to chemicals including: Cadmium and cadmium compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Width:

38 mm

Awg Gauge:

AWG 4...AWG 2/0 copper or aluminium

Electrical Connection:

box lugs

Rohs Exemption Information:

Yes

Product Or Component Type:

miniature circuit-breaker

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Circuit Breaker Application:

HACR rated

Circularity Profile:

N/A

Eu Rohs Directive:

Compliant with Exemptions

Breaking Capacity:

22 kA 120/240 V AC 50/60 Hz || 22 kA 240 V AC 50/60 Hz || 22 kA 120 V AC 50/60 Hz

Sustainable Offer Status:

Green Premium product

Height:

89 mm

Line Rated Current:

80 A

Circuit Breaker Type:

standard

Tightening Torque:

5.6-5.6 N.m

Mercury Free:

Yes

Number Of Spaces Required:

2

Range Of Product:

QO

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Ambient Air Temperature For Operation:

40 °C

Halogen Content Performance:

Halogen free product

Warranty:

18 months

Net Weight:

0.322 kg

Product Certifications:

UL Listed || CSA

Mounting Mode:

bolt-on

[Ue] Rated Operational Voltage:

120/240 V AC || 240 V AC || 120 V AC

Depth:

74 mm
